一、概念

Ingress 是 Kubernetes 中的一种 API 对象，它管理对集群中服务的外部访问，通常是 HTTP/HTTPS。Ingress 可以提供负载均衡、SSL 终止和基于名称的虚拟主机等功能。它充当集群入口点，将外部请求路由到集群内部的服务。

二、使用Traefik Ingress（官方样列）

Traefik Ingress CRD (Custom Resource Definition) 是 Traefik 代理提供的一种扩展 Kubernetes Ingress 资源的方式。它允许使用自定义资源来配置 Traefik 的路由规则，比标准 Ingress 资源提供更多功能和灵活性。

js
vi kubernetes-crd-definition-v1.yml

http://songxuan.vip:5212/s/Y5Ub

js
vi kubernetes-crd-rbac.yml

http://songxuan.vip:5212/s/npIX

js
vi services.yml

yml
apiVersion: v1
kind: Service
metadata:
  name: traefik

spec:
  ports:
    - protocol: TCP
      name: web
      port: 8000
    - protocol: TCP
      name: admin
      port: 8080
    - protocol: TCP
      name: websecure
      port: 4443
  selector:
    app: traefik

---
apiVersion: v1
kind: Service
metadata:
  name: whoami

spec:
  ports:
    - protocol: TCP
      name: web
      port: 80
  selector:
    app: whoami

js
‌Traefik服务‌：
暴露三个端口：8000(web)、8080(admin)和4443(websecure)
使用TCP协议
选择标签为app=traefik的Pod作为后端
‌whoami服务‌：
暴露80端口(web)
使用TCP协议
选择标签为app=whoami的Pod作为后端

js
apiVersion: v1
kind: ServiceAccount
metadata:
  namespace: default
  name: traefik-ingress-controller

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: default
  name: traefik
  labels:
    app: traefik

spec:
  replicas: 1
  selector:
    matchLabels:
      app: traefik
  template:
    metadata:
      labels:
        app: traefik
    spec:
      hostNetwork: true  #设置成虚拟机的网络，也就是本机服务器ip
      nodeName: k8s-node03  #亲和性运行到指定的 节点
      serviceAccountName: traefik-ingress-controller
      containers:
        - name: traefik
          image: traefik:v3.5
          args:
            - --api.insecure
            - --accesslog
            - --entryPoints.web.Address=:8000
            - --entryPoints.websecure.Address=:4443
            - --providers.kubernetescrd
            - --certificatesresolvers.myresolver.acme.tlschallenge
            - --certificatesresolvers.myresolver.acme.email=foo@you.com
            - --certificatesresolvers.myresolver.acme.storage=acme.json
            # Please note that this is the staging Let's Encrypt server.
            # Once you get things working, you should remove that whole line altogether.
            - --certificatesresolvers.myresolver.acme.caserver=https://acme-staging-v02.api.letsencrypt.org/directory
          ports:
            - name: web
              containerPort: 8000
            - name: websecure
              containerPort: 4443
            - name: admin
              containerPort: 8080

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: default
  name: whoami
  labels:
    app: whoami

spec:
  replicas: 2
  selector:
    matchLabels:
      app: whoami
  template:
    metadata:
      labels:
        app: whoami
    spec:
      containers:
        - name: whoami
          image: traefik/whoami
          ports:
            - name: web
              containerPort: 80

js
这是一个完整的Kubernetes部署配置，包含三个主要部分：
ServiceAccount、Traefik Ingress Controller部署和whoami应用部署。以下是详细分析：

一、ServiceAccount配置
创建名为"traefik-ingress-controller"的ServiceAccount
位于default命名空间

二、Traefik Ingress Controller部署
基本信息
部署名称：traefik
副本数：1
使用标签选择器app=traefik
指定运行在 k8s-node03节点
启用hostNetwork模式(使用主机网络)
容器配置
使用traefik.10镜像
端口配置：
web: 8000
websecure: 4443
admin: 8080
参数配置
启用不安全API(--api.insecure)
启用访问日志(--accesslog)
定义入口点：
web(8000)
websecure(4443)
使用Kubernetes CRD提供者
配置ACME证书解析器：
使用TLS挑战方式
注册邮箱foo@you.com
证书存储文件acme.json
使用Lets Encrypt的staging环境

三、whoami应用部署
基本信息
部署名称：whoami
副本数：2
使用标签选择器app=whoami
亲和性配置
确保Pod不会调度到k8s-node03节点
容器配置
使用traefik/whoami镜像
暴露80端口(web)

js
vi ingressroutes.yml

yml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: simpleingressroute
  namespace: default
spec:
  entryPoints:
    - web
  routes:
  - match: Host(`your.example.com`) && PathPrefix(`/notls`)
    kind: Rule
    services:
    - name: whoami
      port: 80

---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: ingressroutetls
  namespace: default
spec:
  entryPoints:
    - websecure
  routes:
  - match: Host(`your.example.com`) && PathPrefix(`/tls`)
    kind: Rule
    services:
    - name: whoami
      port: 80
  tls:
    certResolver: myresolver

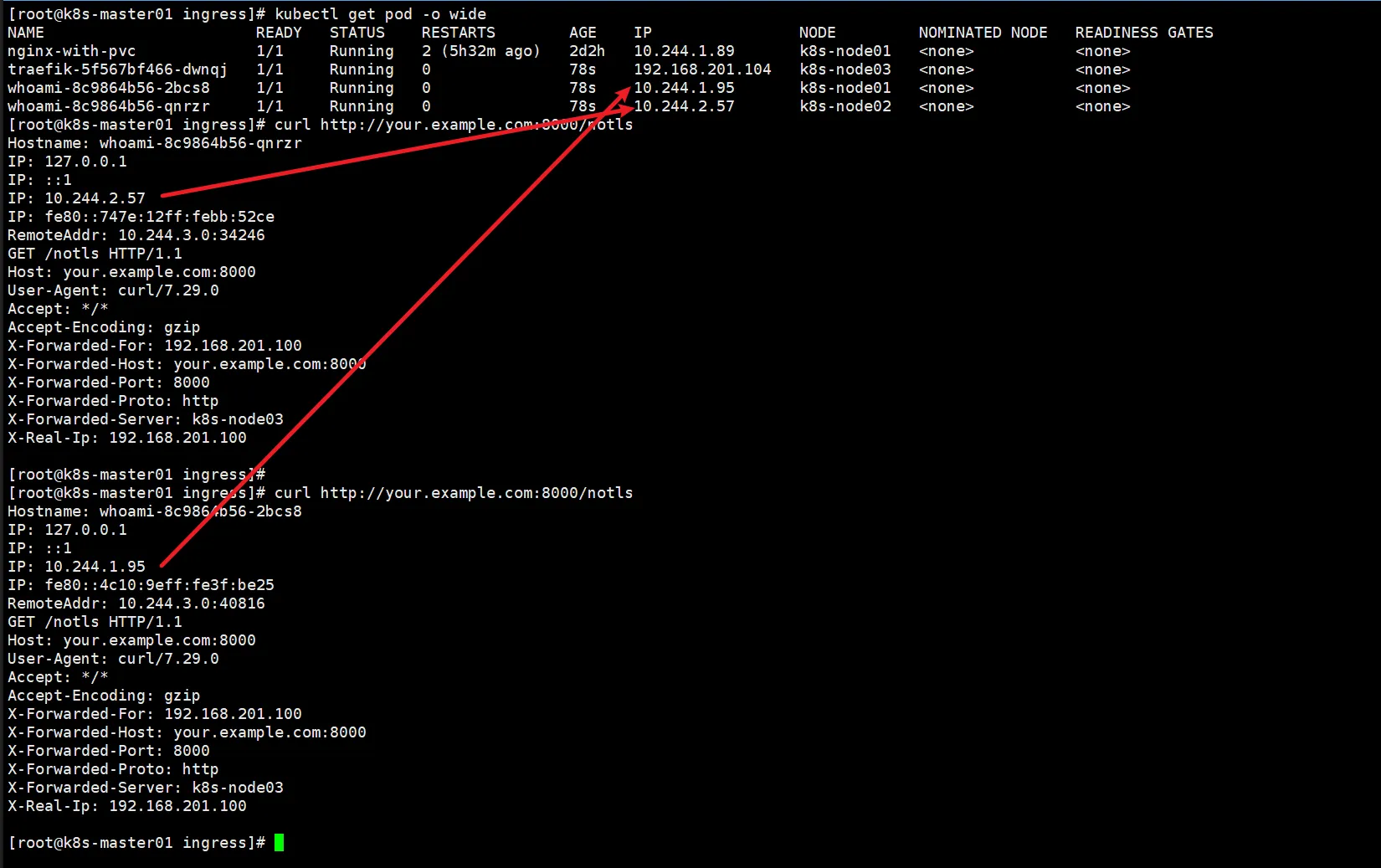

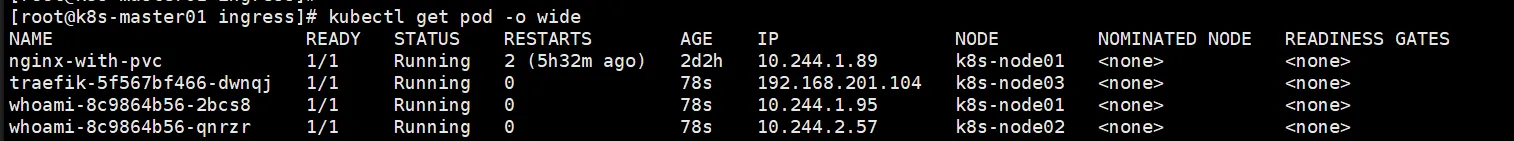

全部机器配置本地域名，看该pod跑在哪个节点上就把 配进域名

js
vi /etc/hosts

三、

js
vi ngixn-deployment.yml

yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  replicas: 1
  template:
    metadata:
      name: nginx
      labels:
        app: nginx
    spec:
      hostNetwork: true
      containers:
        - name: nginx
          image: nginx:1.19
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80

      restartPolicy: Always
  selector:
    matchLabels:
      app: nginx

js
使用nginx:1.19官方镜像
通过hostNetwork: true直接共享宿主机网络（非标准生产用法，通常用于调试）
单副本运行（replicas: 1）
容器暴露80端口
‌作用‌：
在Kubernetes集群中生成一个运行Nginx的Pod，处理HTTP请求。

js
vi nginx-service.yml

yml
apiVersion: v1
kind: Service
metadata:
  name: nginx
spec:
  selector:
    app: nginx
  ports:
    - port: 80
      targetPort: 80
  type: ClusterIP

yml
‌核心功能‌：提供集群内部访问入口
‌关键配置‌：
类型为ClusterIP（默认服务类型）
通过标签选择器app: nginx关联Deployment创建的Pod
将Service的80端口映射到Pod的80端口
‌作用‌：
为Nginx Pod提供稳定的虚拟IP和DNS名称（如nginx.default.svc.cluster.local），
实现集群内其他服务对Nginx的访问。

js
vi nginx-ing.yml

yml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: nginx-web-route
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`songxuan,com`)
      kind: Rule
      services:
        - name: nginx
          port: 80

---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: nginx-websecure-route
spec:
  entryPoints:
    - websecure
  routes:
    - match: Host(`songxuan.com`)
      kind: Rule
      services:
        - name: nginx
          port: 80
  tls:
    certResolver: myresolver

js
‌核心功能‌：管理外部流量入口（通过Traefik Ingress Controller）
‌包含两部分配置‌：
‌(1) HTTP路由 (nginx-web-route)‌
监听Traefik的web入口点（默认80端口）
将域名nginx.com的请求路由到后端nginx服务的80端口
‌(2) HTTPS路由 (nginx-websecure-route)‌
监听Traefik的websecure入口点（默认443端口）
相同域名路由规则，但启用TLS加密
使用certResolver: myresolver自动申请/续签SSL证书

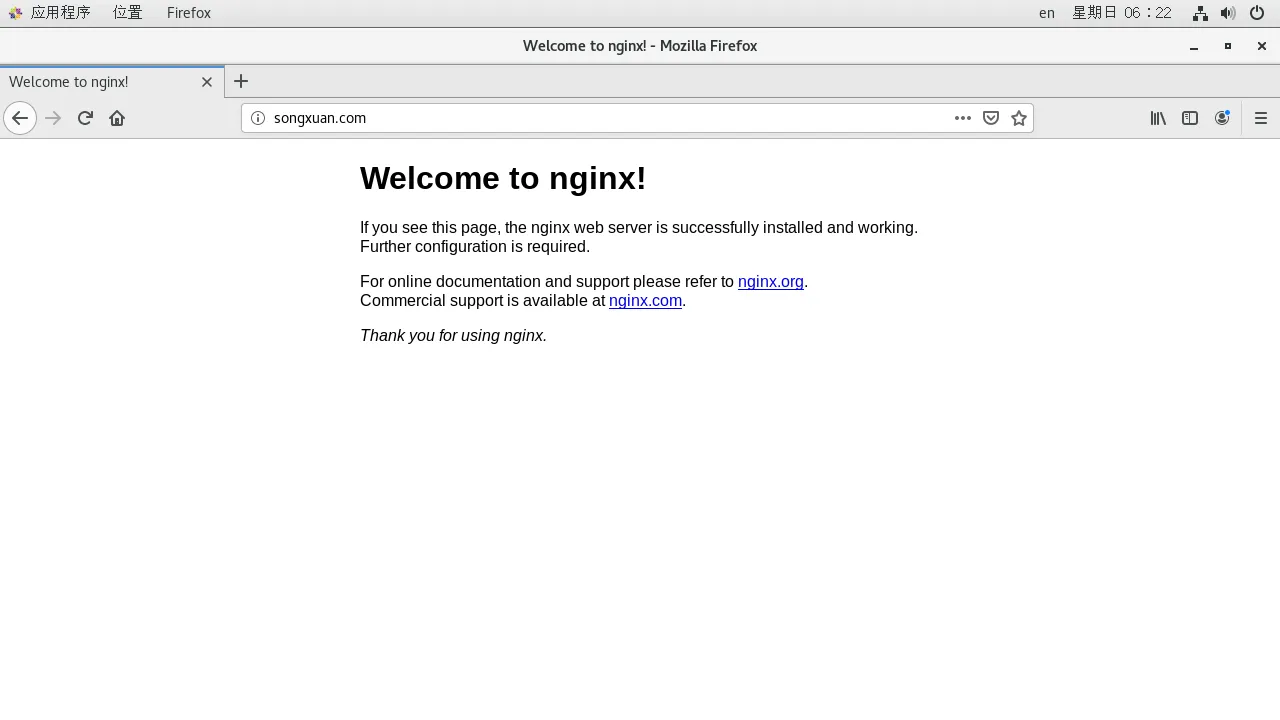

用户访问http://songxuan.com 时候，就走Traefik web入口，https就是走websecure入口 然后走到内部的Service，Service会把deployment暴露的80端口进行映射

yml
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.13.0
  name: ingressroutes.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: IngressRoute
    listKind: IngressRouteList
    plural: ingressroutes
    singular: ingressroute
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: IngressRoute is the CRD implementation of a Traefik HTTP Router.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: IngressRouteSpec defines the desired state of IngressRoute.
            properties:
              entryPoints:
                description: 'EntryPoints defines the list of entry point names to
                  bind to. Entry points have to be configured in the static configuration.
                  More info: https://doc.traefik.io/traefik/v2.10/routing/entrypoints/
                  Default: all.'
                items:
                  type: string
                type: array
              routes:
                description: Routes defines the list of routes.
                items:
                  description: Route holds the HTTP route configuration.
                  properties:
                    kind:
                      description: Kind defines the kind of the route. Rule is the
                        only supported kind.
                      enum:
                      - Rule
                      type: string
                    match:
                      description: 'Match defines the router''s rule. More info: https://doc.traefik.io/traefik/v2.10/routing/routers/#rule'
                      type: string
                    middlewares:
                      description: 'Middlewares defines the list of references to
                        Middleware resources. More info: https://doc.traefik.io/traefik/v2.10/routing/providers/kubernetes-crd/#kind-middleware'
                      items:
                        description: MiddlewareRef is a reference to a Middleware
                          resource.
                        properties:
                          name:
                            description: Name defines the name of the referenced Middleware
                              resource.
                            type: string
                          namespace:
                            description: Namespace defines the namespace of the referenced
                              Middleware resource.
                            type: string
                        required:
                        - name
                        type: object
                      type: array
                    priority:
                      description: 'Priority defines the router''s priority. More
                        info: https://doc.traefik.io/traefik/v2.10/routing/routers/#priority'
                      type: integer
                    services:
                      description: Services defines the list of Service. It can contain
                        any combination of TraefikService and/or reference to a Kubernetes
                        Service.
                      items:
                        description: Service defines an upstream HTTP service to proxy
                          traffic to.
                        properties:
                          kind:
                            description: Kind defines the kind of the Service.
                            enum:
                            - Service
                            - TraefikService
                            type: string
                          name:
                            description: Name defines the name of the referenced Kubernetes
                              Service or TraefikService. The differentiation between
                              the two is specified in the Kind field.
                            type: string
                          namespace:
                            description: Namespace defines the namespace of the referenced
                              Kubernetes Service or TraefikService.
                            type: string
                          nativeLB:
                            description: NativeLB controls, when creating the load-balancer,
                              whether the LB's children are directly the pods IPs
                              or if the only child is the Kubernetes Service clusterIP.
                              The Kubernetes Service itself does load-balance to the
                              pods. By default, NativeLB is false.
                            type: boolean
                          passHostHeader:
                            description: PassHostHeader defines whether the client
                              Host header is forwarded to the upstream Kubernetes
                              Service. By default, passHostHeader is true.
                            type: boolean
                          port:
                            anyOf:
                            - type: integer
                            - type: string
                            description: Port defines the port of a Kubernetes Service.
                              This can be a reference to a named port.
                            x-kubernetes-int-or-string: true
                          responseForwarding:
                            description: ResponseForwarding defines how Traefik forwards
                              the response from the upstream Kubernetes Service to
                              the client.
                            properties:
                              flushInterval:
                                description: 'FlushInterval defines the interval,
                                  in milliseconds, in between flushes to the client
                                  while copying the response body. A negative value
                                  means to flush immediately after each write to the
                                  client. This configuration is ignored when ReverseProxy
                                  recognizes a response as a streaming response; for
                                  such responses, writes are flushed to the client
                                  immediately. Default: 100ms'
                                type: string
                            type: object
                          scheme:
                            description: Scheme defines the scheme to use for the
                              request to the upstream Kubernetes Service. It defaults
                              to https when Kubernetes Service port is 443, http otherwise.
                            type: string
                          serversTransport:
                            description: ServersTransport defines the name of ServersTransport
                              resource to use. It allows to configure the transport
                              between Traefik and your servers. Can only be used on
                              a Kubernetes Service.
                            type: string
                          sticky:
                            description: 'Sticky defines the sticky sessions configuration.
                              More info: https://doc.traefik.io/traefik/v2.10/routing/services/#sticky-sessions'
                            properties:
                              cookie:
                                description: Cookie defines the sticky cookie configuration.
                                properties:
                                  httpOnly:
                                    description: HTTPOnly defines whether the cookie
                                      can be accessed by client-side APIs, such as
                                      JavaScript.
                                    type: boolean
                                  name:
                                    description: Name defines the Cookie name.
                                    type: string
                                  sameSite:
                                    description: 'SameSite defines the same site policy.
                                      More info: https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/Set-Cookie/SameSite'
                                    type: string
                                  secure:
                                    description: Secure defines whether the cookie
                                      can only be transmitted over an encrypted connection
                                      (i.e. HTTPS).
                                    type: boolean
                                type: object
                            type: object
                          strategy:
                            description: Strategy defines the load balancing strategy
                              between the servers. RoundRobin is the only supported
                              value at the moment.
                            type: string
                          weight:
                            description: Weight defines the weight and should only
                              be specified when Name references a TraefikService object
                              (and to be precise, one that embeds a Weighted Round
                              Robin).
                            type: integer
                        required:
                        - name
                        type: object
                      type: array
                  required:
                  - kind
                  - match
                  type: object
                type: array
              tls:
                description: 'TLS defines the TLS configuration. More info: https://doc.traefik.io/traefik/v2.10/routing/routers/#tls'
                properties:
                  certResolver:
                    description: 'CertResolver defines the name of the certificate
                      resolver to use. Cert resolvers have to be configured in the
                      static configuration. More info: https://doc.traefik.io/traefik/v2.10/https/acme/#certificate-resolvers'
                    type: string
                  domains:
                    description: 'Domains defines the list of domains that will be
                      used to issue certificates. More info: https://doc.traefik.io/traefik/v2.10/routing/routers/#domains'
                    items:
                      description: Domain holds a domain name with SANs.
                      properties:
                        main:
                          description: Main defines the main domain name.
                          type: string
                        sans:
                          description: SANs defines the subject alternative domain
                            names.
                          items:
                            type: string
                          type: array
                      type: object
                    type: array
                  options:
                    description: 'Options defines the reference to a TLSOption, that
                      specifies the parameters of the TLS connection. If not defined,
                      the `default` TLSOption is used. More info: https://doc.traefik.io/traefik/v2.10/https/tls/#tls-options'
                    properties:
                      name:
                        description: 'Name defines the name of the referenced TLSOption.
                          More info: https://doc.traefik.io/traefik/v2.10/routing/providers/kubernetes-crd/#kind-tlsoption'
                        type: string
                      namespace:
                        description: 'Namespace defines the namespace of the referenced
                          TLSOption. More info: https://doc.traefik.io/traefik/v2.10/routing/providers/kubernetes-crd/#kind-tlsoption'
                        type: string
                    required:
                    - name
                    type: object
                  secretName:
                    description: SecretName is the name of the referenced Kubernetes
                      Secret to specify the certificate details.
                    type: string
                  store:
                    description: Store defines the reference to the TLSStore, that
                      will be used to store certificates. Please note that only `default`
                      TLSStore can be used.
                    properties:
                      name:
                        description: 'Name defines the name of the referenced TLSStore.
                          More info: https://doc.traefik.io/traefik/v2.10/routing/providers/kubernetes-crd/#kind-tlsstore'
                        type: string
                      namespace:
                        description: 'Namespace defines the namespace of the referenced
                          TLSStore. More info: https://doc.traefik.io/traefik/v2.10/routing/providers/kubernetes-crd/#kind-tlsstore'
                        type: string
                    required:
                    - name
                    type: object
                type: object
            required:
            - routes
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true
