一、把这几个配置文件丢到主节点服务器

vi service-account.yaml

yml
apiVersion: v1
automountServiceAccountToken: false
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: exporter
    app.kubernetes.io/name: kube-state-metrics
    app.kubernetes.io/version: 2.17.0
  name: kube-state-metrics
  namespace: kube-system-xuan

vi cluster-role.yaml

yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: exporter
    app.kubernetes.io/name: kube-state-metrics
    app.kubernetes.io/version: 2.17.0
  name: kube-state-metrics
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - secrets
  - nodes
  - pods
  - services
  - serviceaccounts
  - resourcequotas
  - replicationcontrollers
  - limitranges
  - persistentvolumeclaims
  - persistentvolumes
  - namespaces
  - endpoints
  verbs:
  - list
  - watch
- apiGroups:
  - apps
  resources:
  - statefulsets
  - daemonsets
  - deployments
  - replicasets
  verbs:
  - list
  - watch
- apiGroups:
  - batch
  resources:
  - cronjobs
  - jobs
  verbs:
  - list
  - watch
- apiGroups:
  - autoscaling
  resources:
  - horizontalpodautoscalers
  verbs:
  - list
  - watch
- apiGroups:
  - authentication.k8s.io
  resources:
  - tokenreviews
  verbs:
  - create
- apiGroups:
  - authorization.k8s.io
  resources:
  - subjectaccessreviews
  verbs:
  - create
- apiGroups:
  - policy
  resources:
  - poddisruptionbudgets
  verbs:
  - list
  - watch
- apiGroups:
  - certificates.k8s.io
  resources:
  - certificatesigningrequests
  verbs:
  - list
  - watch
- apiGroups:
  - discovery.k8s.io
  resources:
  - endpointslices
  verbs:
  - list
  - watch
- apiGroups:
  - storage.k8s.io
  resources:
  - storageclasses
  - volumeattachments
  verbs:
  - list
  - watch
- apiGroups:
  - admissionregistration.k8s.io
  resources:
  - mutatingwebhookconfigurations
  - validatingwebhookconfigurations
  verbs:
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - networkpolicies
  - ingressclasses
  - ingresses
  verbs:
  - list
  - watch
- apiGroups:
  - coordination.k8s.io
  resources:
  - leases
  verbs:
  - list
  - watch
- apiGroups:
  - rbac.authorization.k8s.io
  resources:
  - clusterrolebindings
  - clusterroles
  - rolebindings
  - roles
  verbs:
  - list
  - watch

vi cluster-role-binding.yaml

yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: exporter
    app.kubernetes.io/name: kube-state-metrics
    app.kubernetes.io/version: 2.17.0
  name: kube-state-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-state-metrics
subjects:
- kind: ServiceAccount
  name: kube-state-metrics
  namespace: kube-system-xuan

vi deployment.yaml

js
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: exporter
    app.kubernetes.io/name: kube-state-metrics
    app.kubernetes.io/version: 2.17.0
  name: kube-state-metrics
  namespace: kube-system-xuan
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: kube-state-metrics
  template:
    metadata:
      labels:
        app.kubernetes.io/component: exporter
        app.kubernetes.io/name: kube-state-metrics
        app.kubernetes.io/version: 2.17.0
    spec:
      automountServiceAccountToken: true
      containers:
      - image: bitnami/kube-state-metrics:latest
        livenessProbe:
          httpGet:
            path: /livez
            port: http-metrics
          initialDelaySeconds: 5
          timeoutSeconds: 5
        name: kube-state-metrics
        ports:
        - containerPort: 8080
          name: http-metrics
        - containerPort: 8081
          name: telemetry
        readinessProbe:
          httpGet:
            path: /readyz
            port: telemetry
          initialDelaySeconds: 5
          timeoutSeconds: 5
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 65534
          seccompProfile:
            type: RuntimeDefault
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: kube-state-metrics

vi service.yaml

js
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: exporter
    app.kubernetes.io/name: kube-state-metrics
    app.kubernetes.io/version: 2.17.0
  name: kube-state-metrics
  namespace: kube-system-xuan
spec:
  type: NodePort
  ports:
  - name: http-metrics
    port: 8080
    targetPort: 8080
    nodePort: 31666
    protocol: TCP
  selector:
    app.kubernetes.io/name: kube-state-metrics

js
kubectl apply -f service-account.yaml
kubectl apply -f cluster-role.yaml
kubectl apply -f cluster-role-binding.yaml
kubectl apply -f deployment.yaml
kubectl apply -f service.yaml

二、配置普罗米修斯

prometheus.yml

yml
# 全局配置
global:
  # 数据抓取间隔（默认1分钟）
  scrape_interval: 15s
  # 告警规则评估频率（建议与抓取间隔一致）
  evaluation_interval: 15s
  # 抓取超时时间（默认10秒）

# 告警配置
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # 启用Alertmanager时需配置实际地址
          # - alertmanager:9093

# 规则文件配置
rule_files:
  # 告警规则文件路径（支持通配符）
  # - 'alert_rules/*.rules'
  # 记录规则文件路径
  # - 'recording_rules/*.rules'

# 监控目标配置
scrape_configs:
  - job_name: "prometheus-server"
    file_sd_configs:
      - files:
          - /server/prometheus/node_exporter.yml
        refresh_interval: 5s

#nginx服务
  - job_name: nginx
    static_configs:
     - targets: ['192.168.201.104:9113']

#K8S服务器
  - job_name: K8S
    static_configs:
     - targets: ['192.168.201.100:31666']

然后重启普罗米修斯

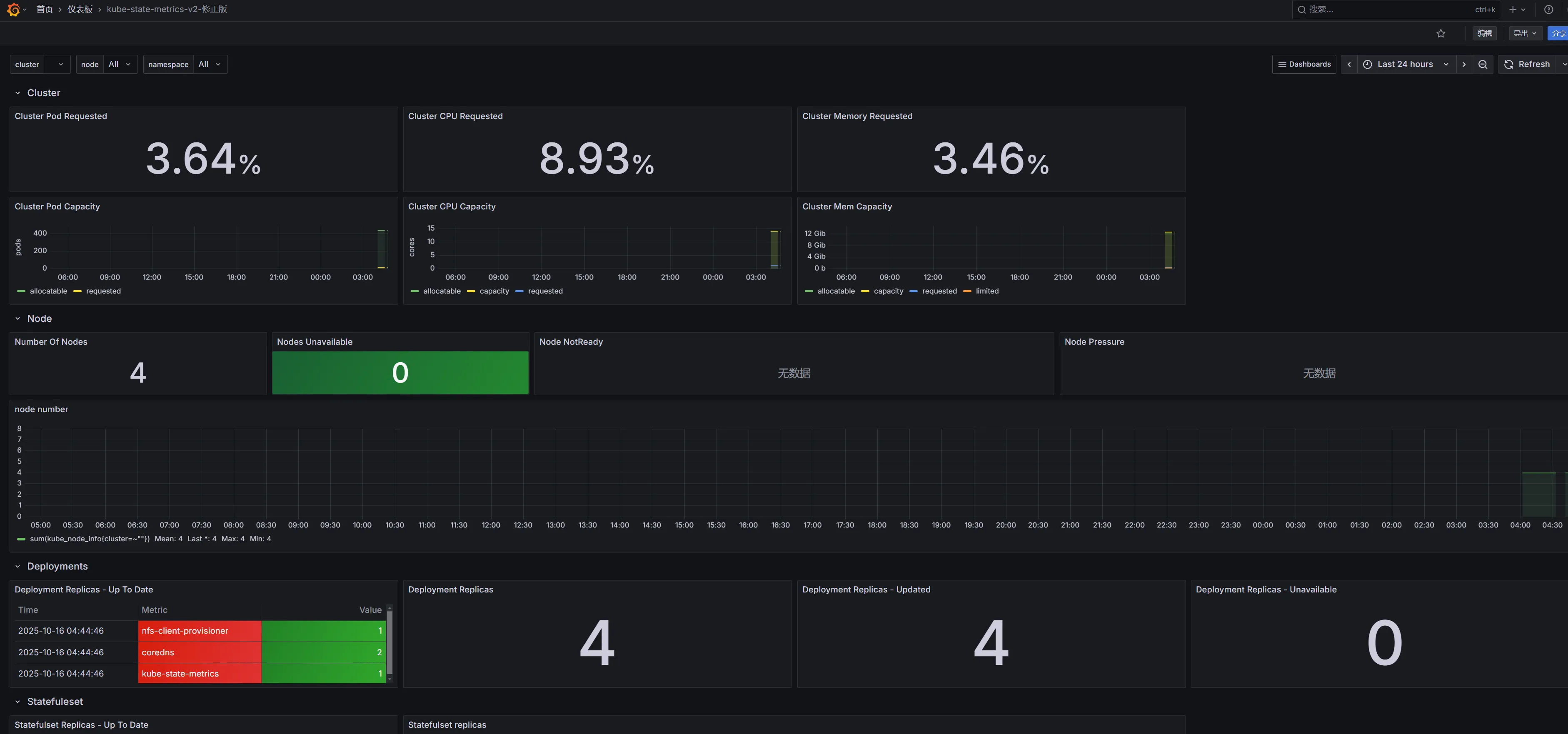

Grafana模版配置

https://grafana.com/grafana/dashboards/17519-kube-state-metrics-v2/

json
17519
13105
