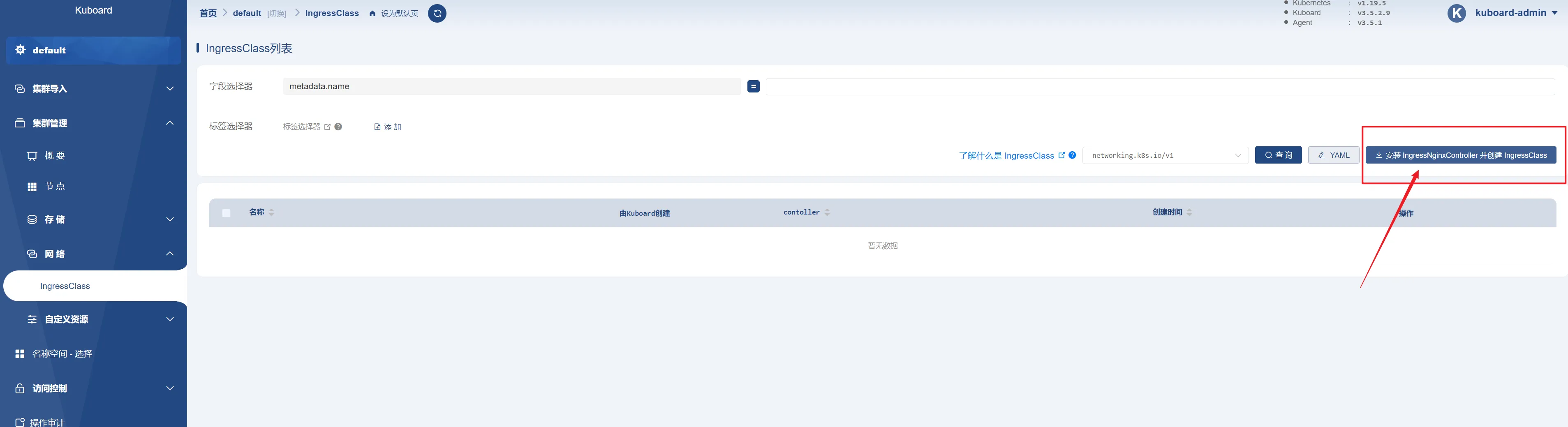

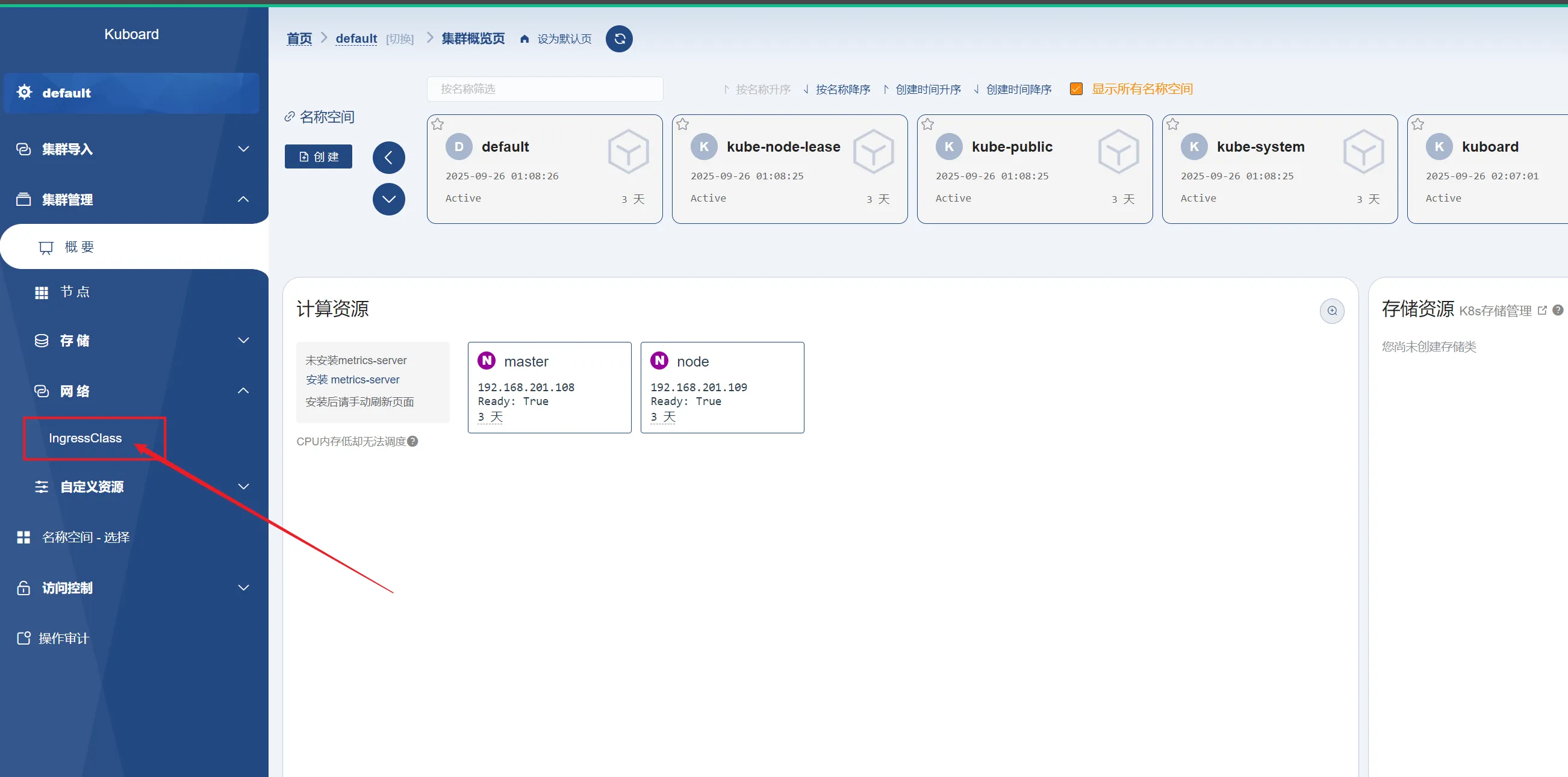

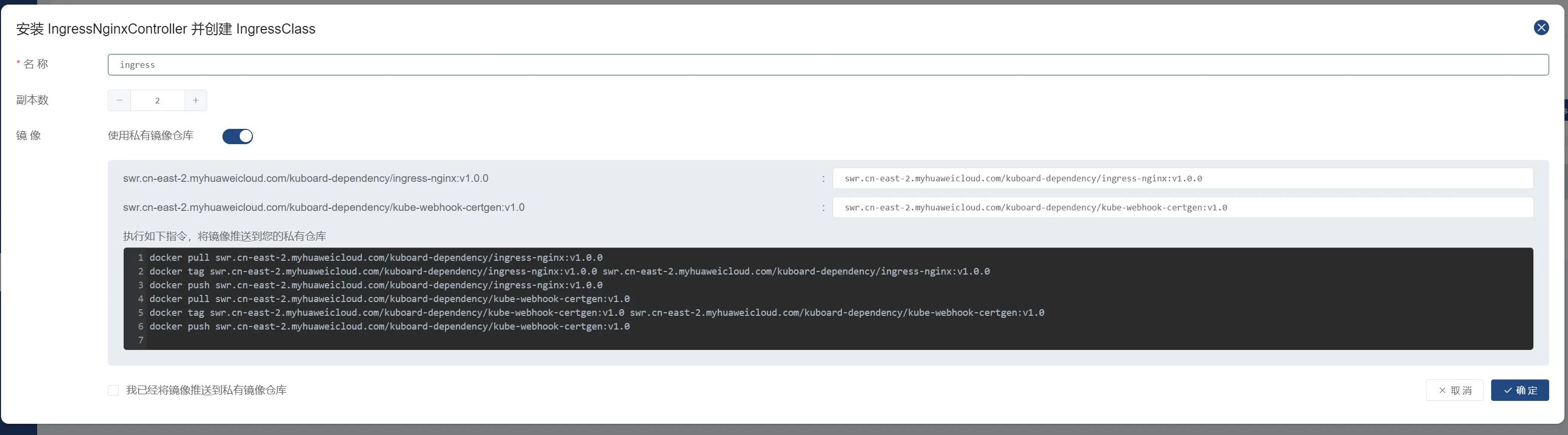

一、安装IngressNginxController

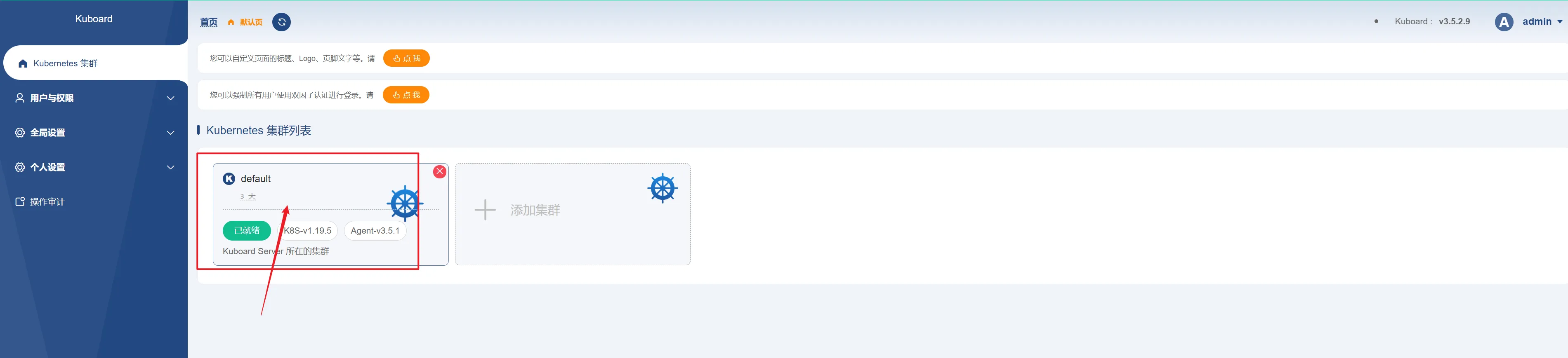

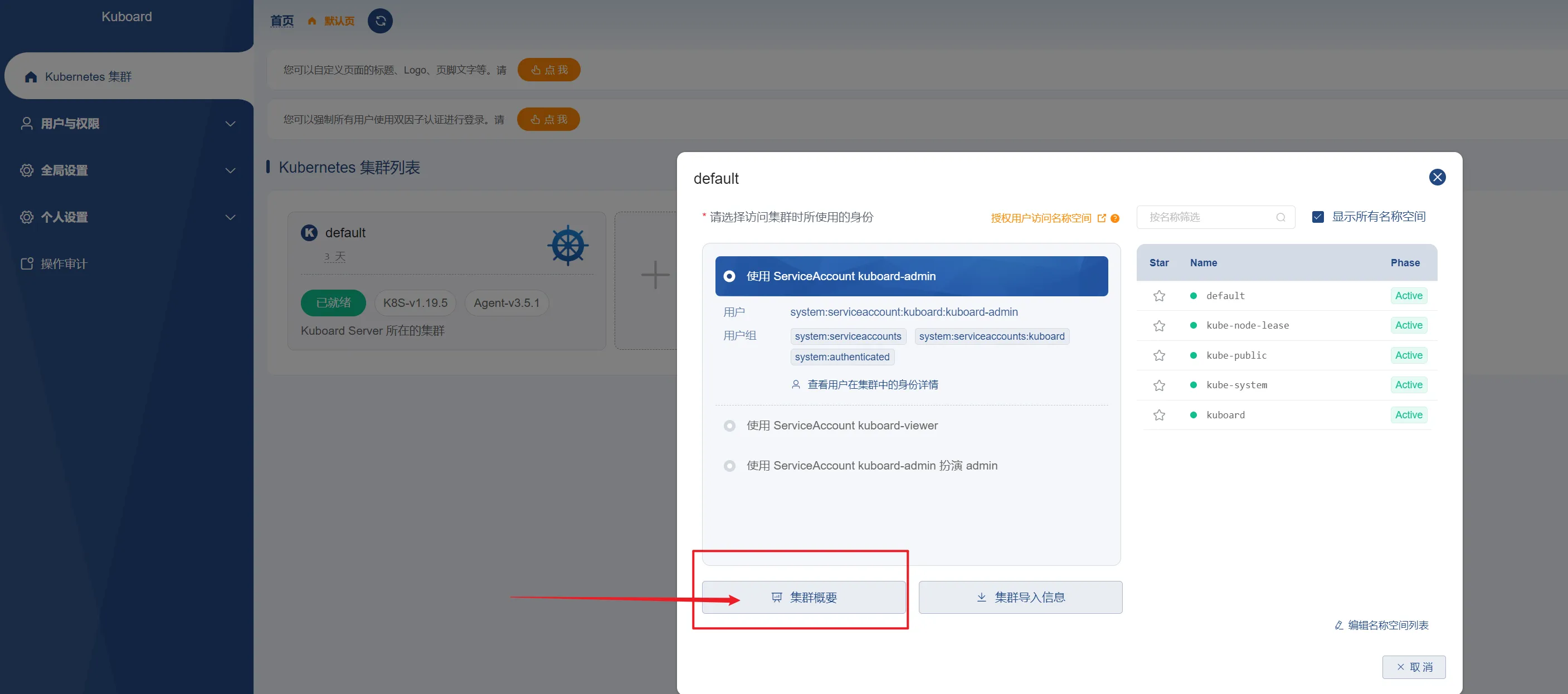

先到图形化界面

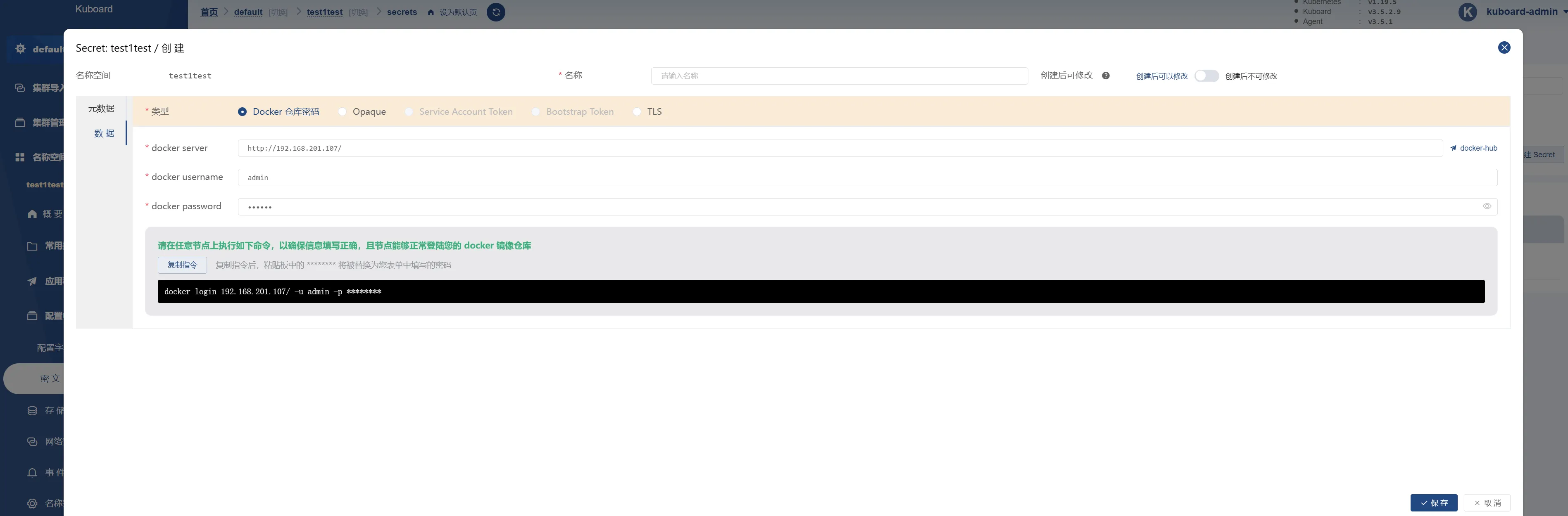

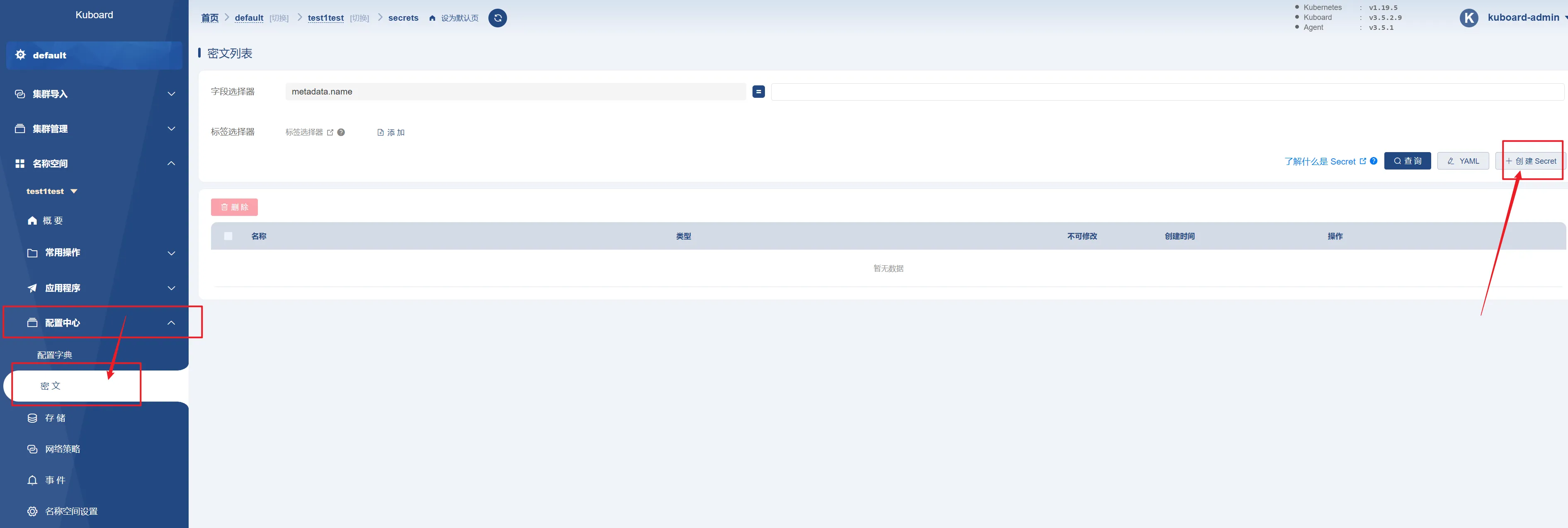

二、配置harbor仓库私服信息

然后去主节点和工作节点都加上docker配置

js
vi /etc/docker/daemon.json

js
{
    "registry-mirrors": [
        "https://docker.m.daocloud.io",
        "https://docker.1panel.live",
        "https://hub.rat.dev"
    ],
   "insecure-registries":["192.168.201.107:80"]
}

然后重启docker，测试是否能登录,记住测试登录加端口，不然docker默认是https协议就是443

三、先准备部署到k8s的yml文件

yml
apiVersion: v1
kind: Namespace
metadata:
  name: test1test
  labels:
    app: test1test

pipeline.yml

yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: test1test
  namespace: test1test
  labels:
    app: test1test
spec:
  replicas: 2
  selector:
    matchLabels:
      app: test1test
  template:
    metadata:
      labels:
        app: test1test
    spec:
      containers:
        - name: test1test
          image: 192.168.201.107:80/mytest1test/mytest1test:V8.0.2
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: test1test
  namespace: test1test
  labels:
    app: test1test
spec:
  selector:
    app: test1test
  ports:
    - protocol: TCP
      port: 8081
      targetPort: 8080
  type: NodePort
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test1test
  namespace: test1test
  labels:
    app: test1test
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: ingress
  rules:
    - host: songxuan.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: test1test
                port:
                  number: 8081

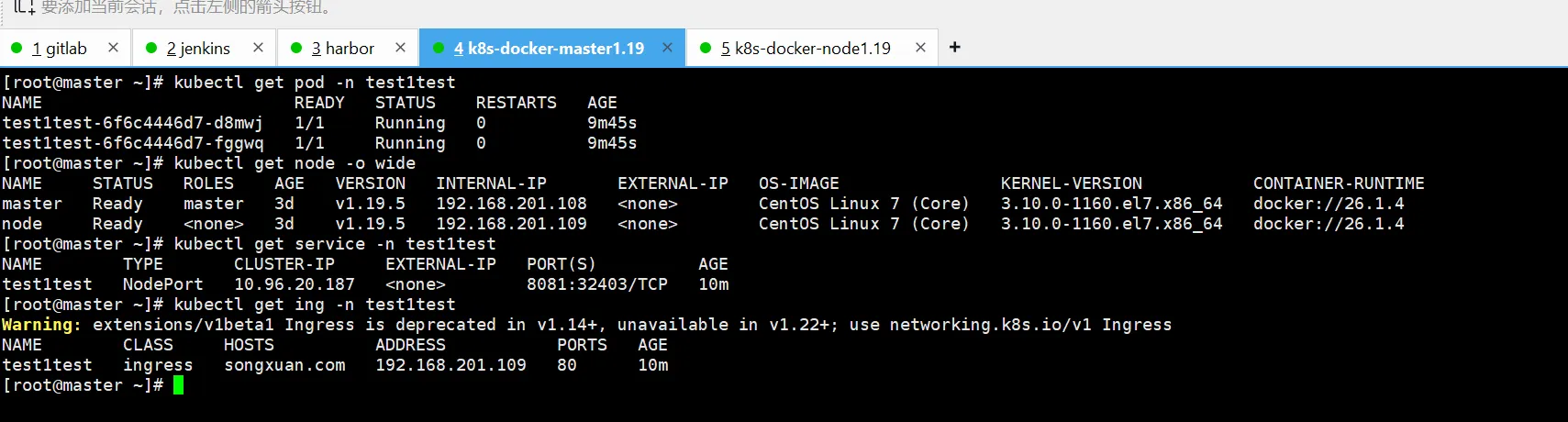

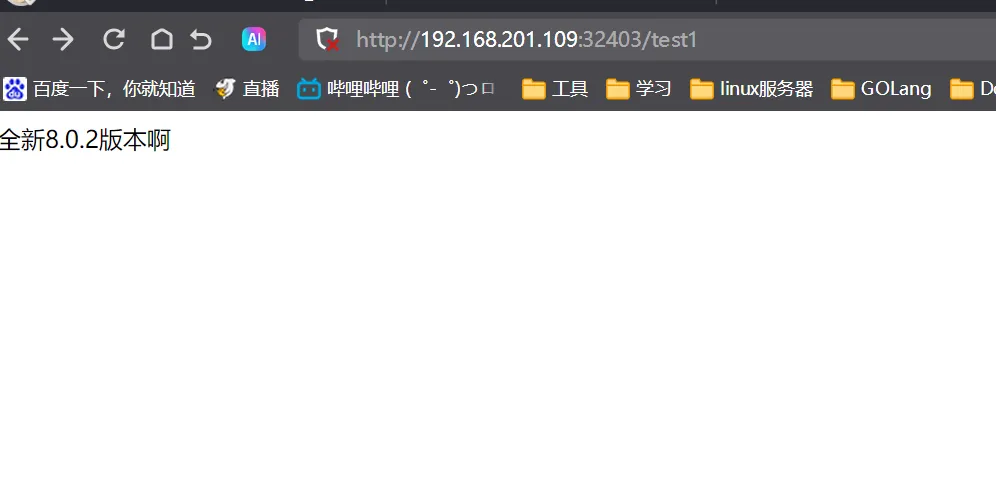

启动后访问ing的IP+Service暴露的32403端口进行访问测试

测试没有问题

四、去Jenkins整合到k8s中

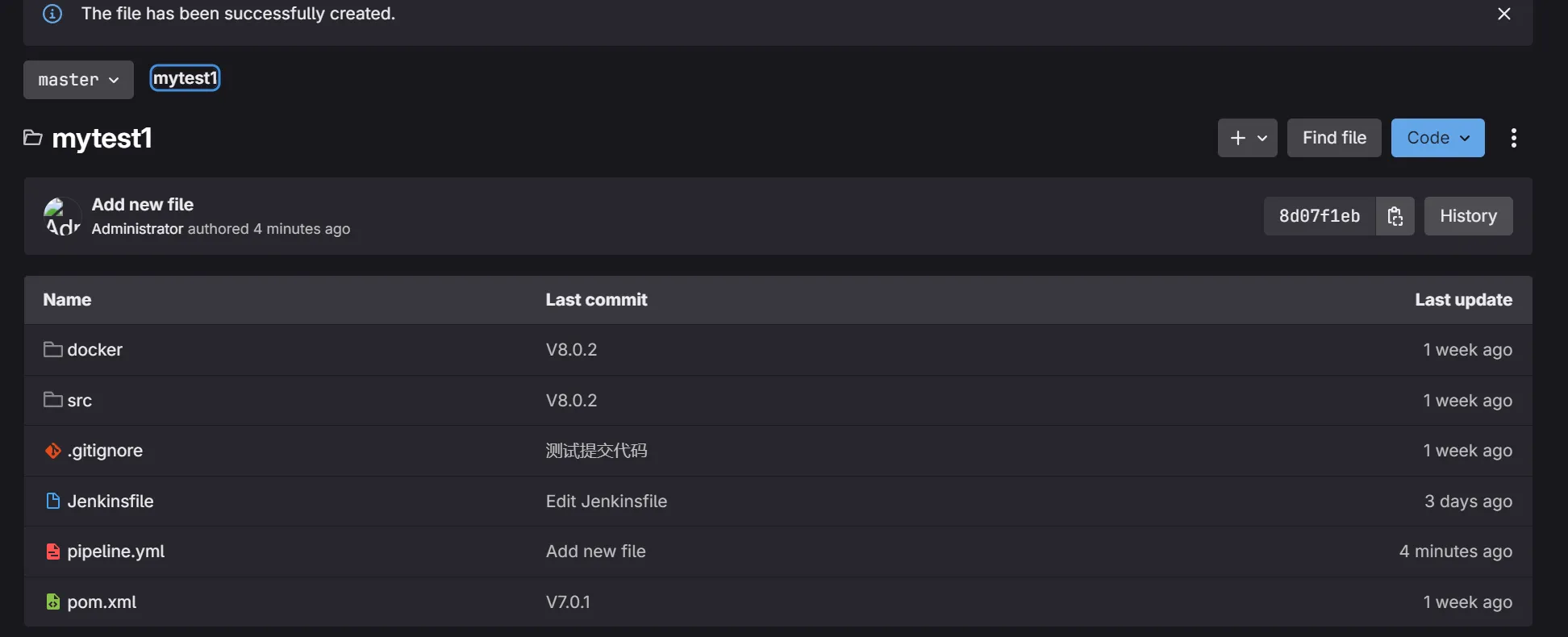

在gitlab创建一个pipeline.yml文件，把上面的yml文件沾上去

先去主节点服务器创建一个目录

js
mkdir /songxuan

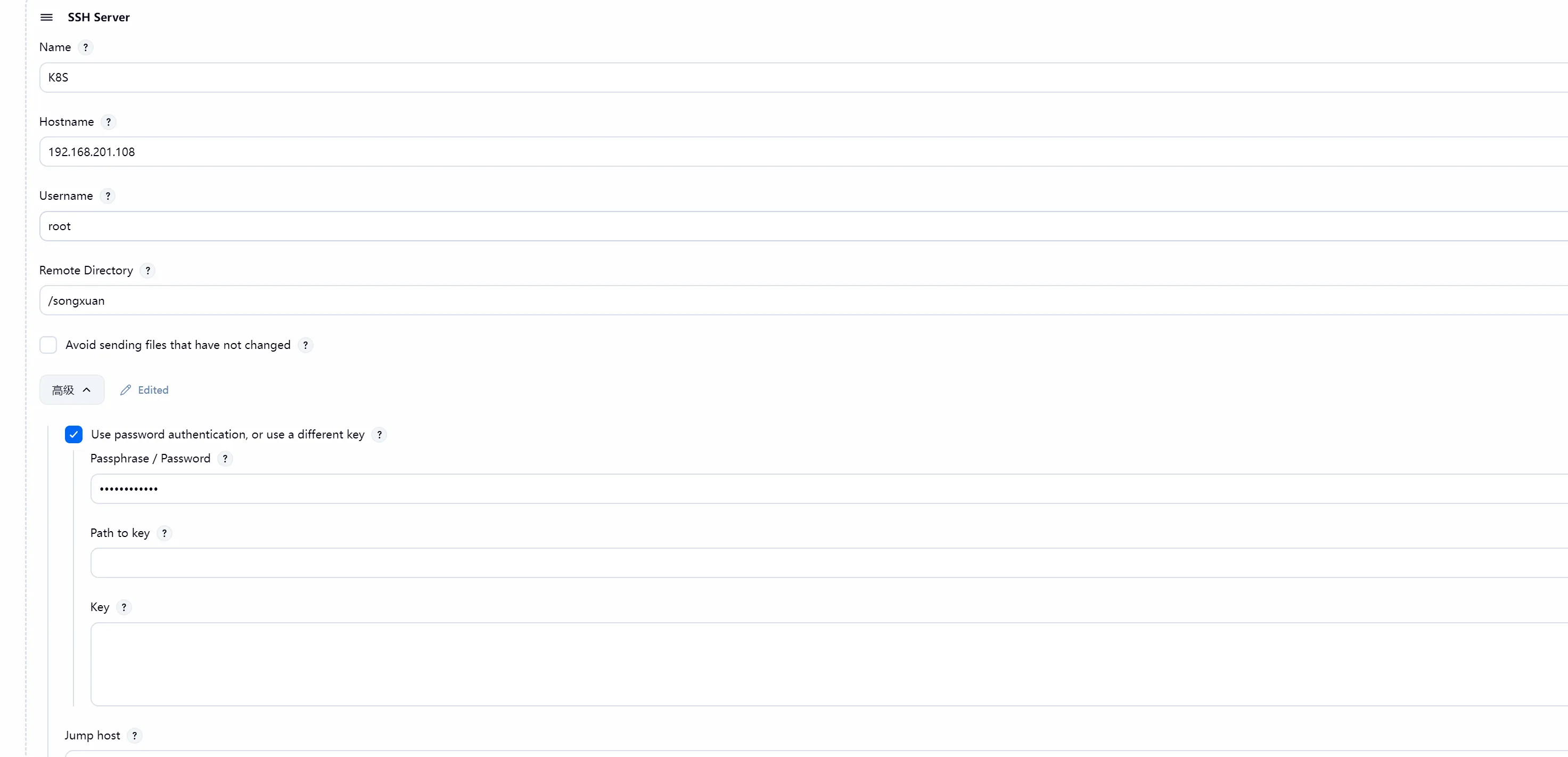

然后去Jenkins全局配置新增一个远程连接到k8s服务器的配置

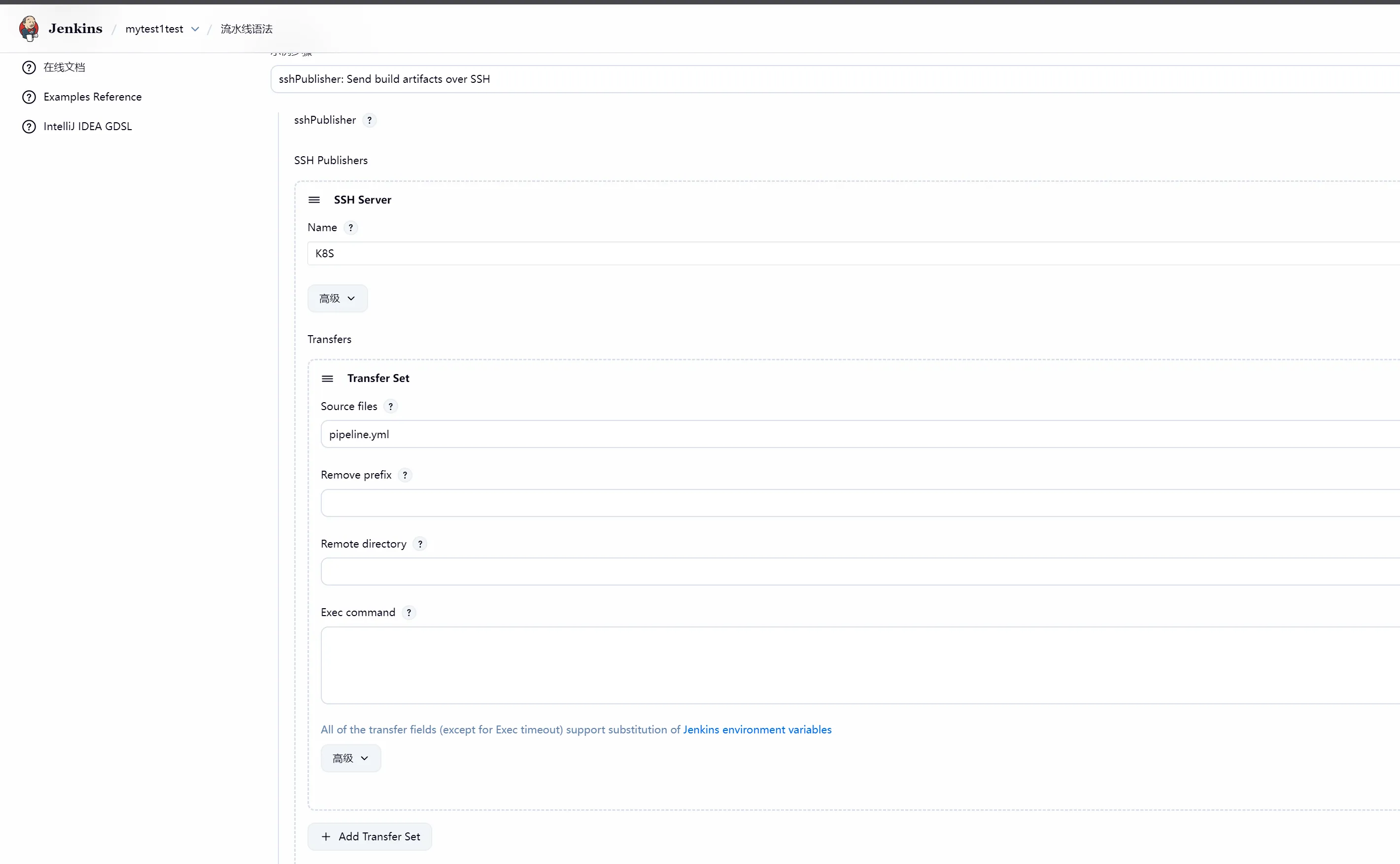

然后生成语法

js
sshPublisher(publishers: [sshPublisherDesc(configName: 'K8S', transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: '', execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: '', remoteDirectorySDF: false, removePrefix: '', sourceFiles: 'pipeline.yml')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])

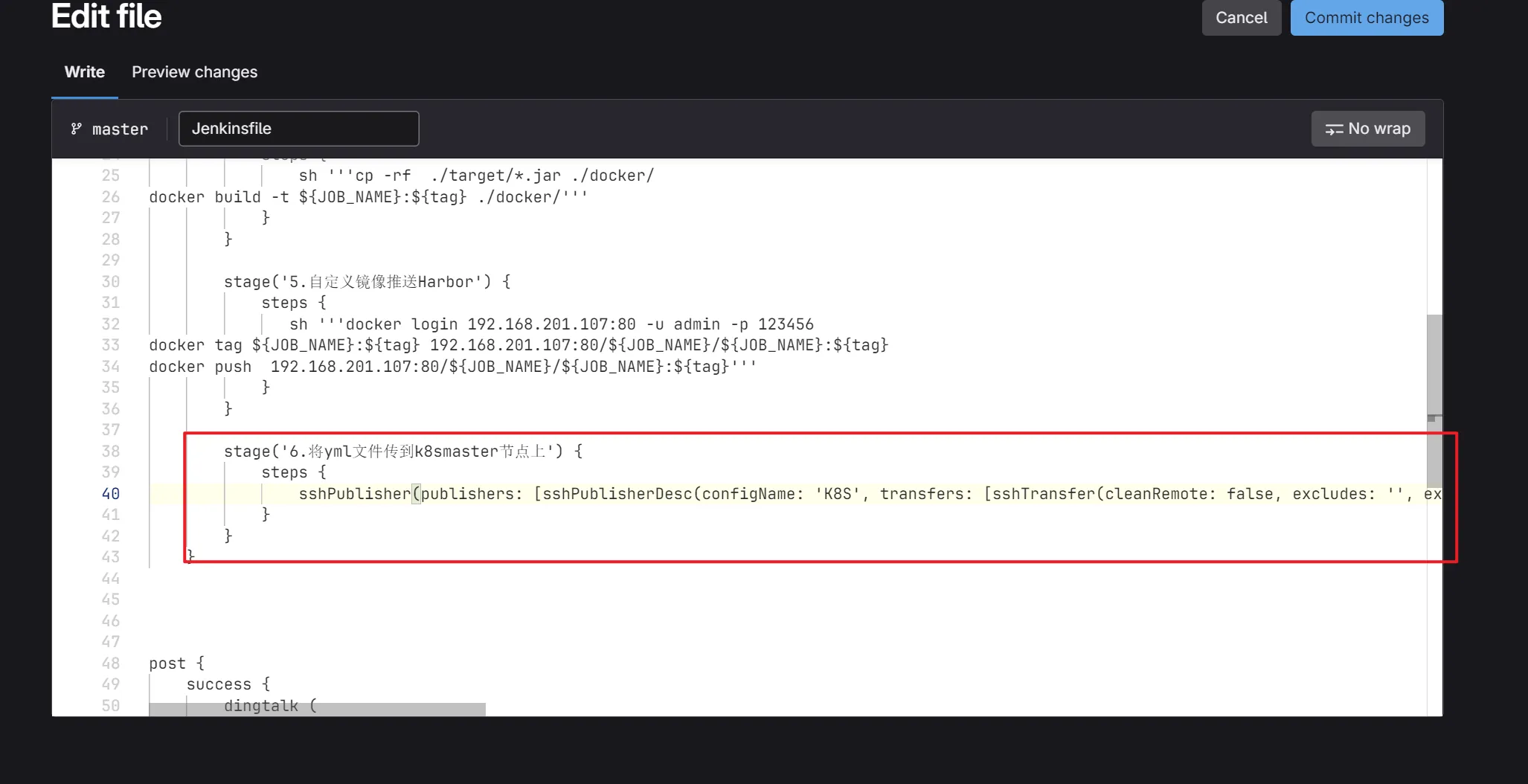

在gitlab更改Jenkinsfile文件，把之前的第6步替换掉

然后进入Jenkins容器内部配置免密登录 如果没有~/.ssh目录下没有东西或没目录，用以下命令重新生成一下

js
# 强制创建.ssh目录并设置权限
mkdir -p ~/.ssh
chmod 700 ~/.ssh

# 生成RSA密钥对（无密码）
ssh-keygen -t rsa -b 4096 -f ~/.ssh/id_rsa -N ""

# 设置密钥权限
chmod 600 ~/.ssh/id_rsa
chmod 644 ~/.ssh/id_rsa.pub

# 将公钥追加到authorized_keys
cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
chmod 600 ~/.ssh/authorized_keys

把Jenkins内部容器的公钥给到master节点

js
$ cat id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDGYg72GXNQmFPwEEp986OqHF7vCcVxJw6mox5iKifJReaUKdcLEXqjUcu6mUi29j3hFMi4QT7Oc3+JmgEeAxWLWmC4zADm0NWqzKDJ6qdptU01cMkFlukpBU9u/GBAyCLQ6sgK75O62HTIq2MVe9TqXOficr90IOSxpObPFq1ZEnWp6i76Ag7hMO3e8Hm4wSD4e6edxbDIgzzRNo58GO1YikHEiYkd86sMzJTI/Xf2myw9ETgen7MlFGrOgdBPktmD4Wexg3Ug72uZJxOB96sn5TOXzIYs9YsGvJeOsZ/zTk9okrRCIybjBjDJvmfDmjUNFF77byIFHCu2UAWpYGHeui3BlVwSjRdaysHIPFUEmadUwi0Oa3JpgnhU600UfsEJn3fGVm2XrwtLR0bhrj/LTsvM0UmvsAs0RC4b8EzrExbPWPfQPwUJLxKZcEfyW1cK6a4y8+qb2WV7HXv7acBtywTwBHAuuYeo6HKweyYoz/c2/pTWjZ3PpGETBUYB6km3WWrjDEzfxYVlGFb5mB+GWh1m5Knak9wABv06k9XVt3NL6ZjzkwH0WBd5Lr0YvfFocLLurq8gGjaBiWQ0lOPjDqILLwaV6Xm9ZoXyUb2My9yIBwYm2w9VhA9LreI0H8G8JDOzF+hBYV8ikF/8meqFuJgJMGe+/RZSNDhU/3FKQw== jenkins@5ca614ac051b

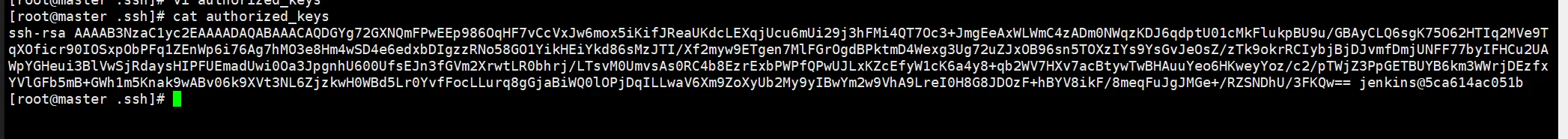

把Jenkins的公钥放到master节点的~/.ssh/authorized_keys里面

js
vi ~/.ssh/authorized_keys

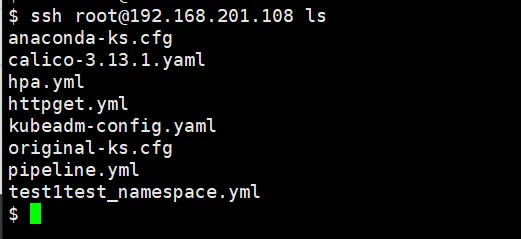

然后测试免密是否成功，在Jenkins容器内部执行ssh命令

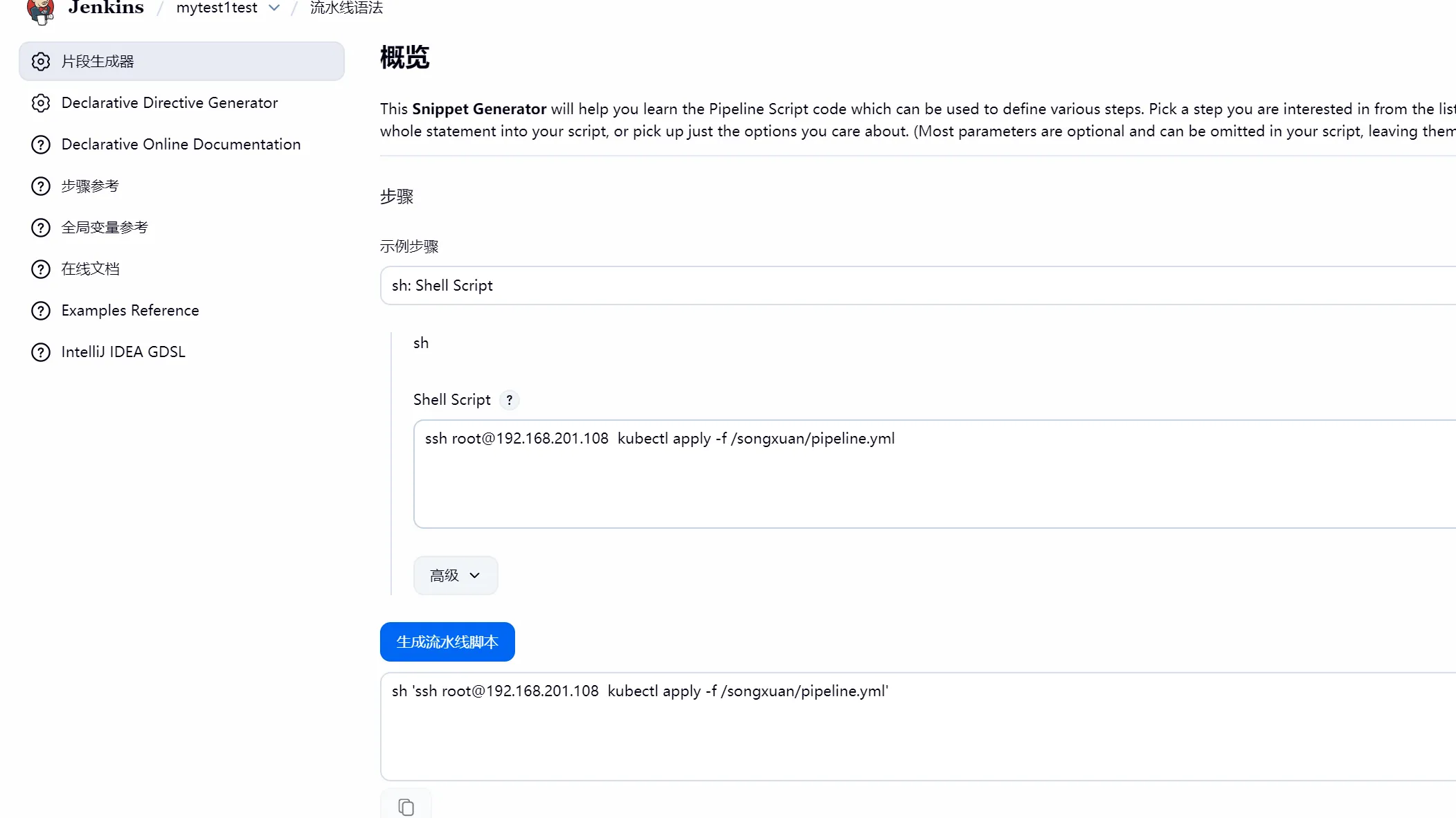

最后去Jenkins生成语法

js
sh 'ssh root@192.168.201.108  kubectl apply -f /songxuan/pipeline.yml'

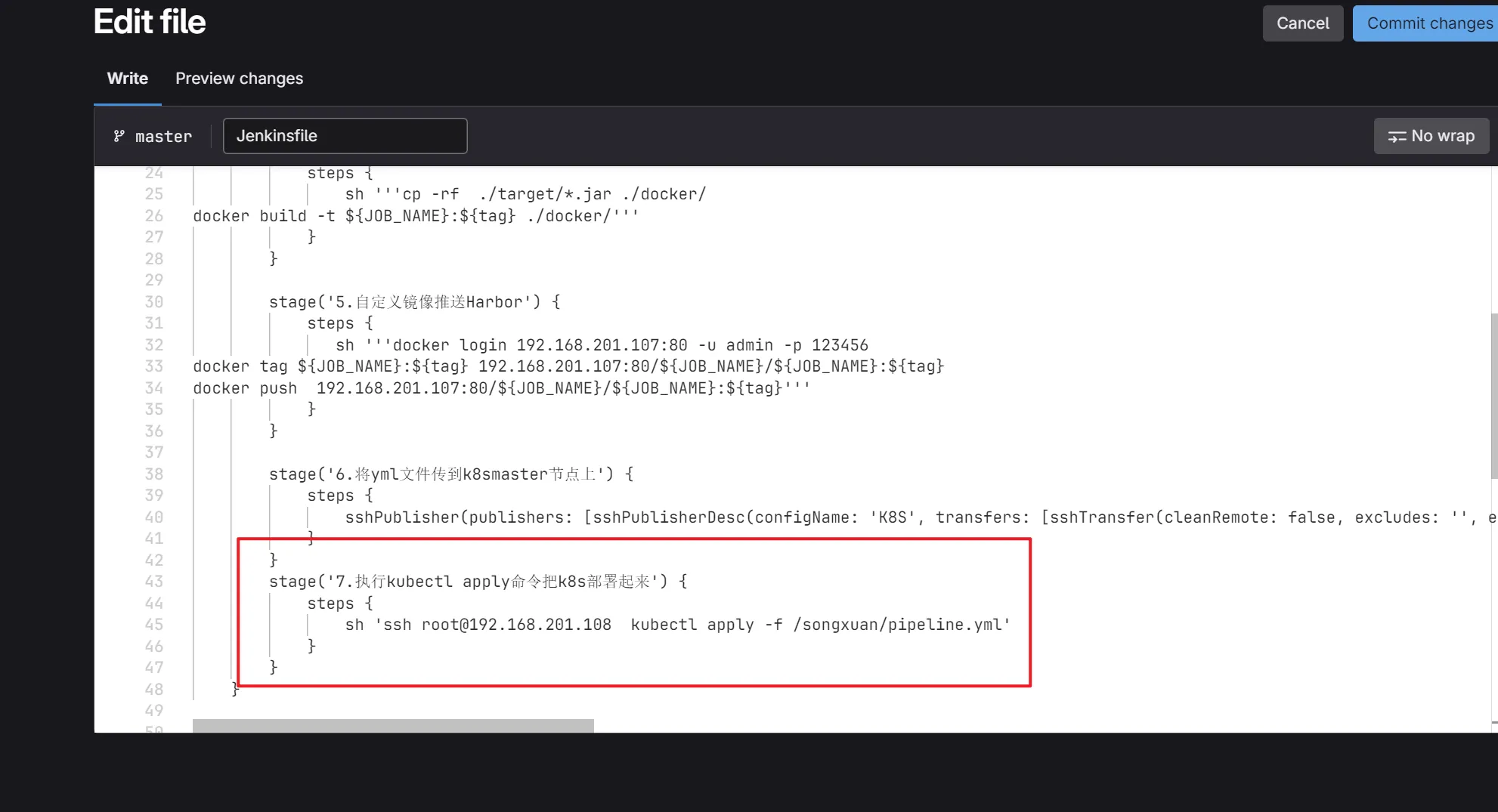

然后去gitlab的Jenkins文件再加一条

js
pipeline {
    agent any

    stages {
        stage('1.拉取git仓库代码') {
            steps {
                checkout scmGit(branches: [[name: '${tag}']], extensions: [], userRemoteConfigs: [[credentialsId: '41ccb3f5-d95e-4f7c-94cd-8af30c885e0d', url: 'http://192.168.201.105:8929/root/mytest1.git']])
            }
        }

        stage('2.通过Maven构建项目') {
            steps {
                sh '/var/jenkins_home/maven/bin/mvn  clean package -DskipTests'
            }
        }

        stage('3.质量代码检测') {
            steps {
                sh '/var/jenkins_home/sonar-scanner-4.8.0.2856-linux/bin/sonar-scanner  -Dsonar.sources=./  -Dsonar.projectname=${JOB_NAME}  -Dsonar.projectKey=${JOB_NAME}   -Dsonar.java.binaries=./target/  -Dsonar.login=178e1842a7318cabd37749b7f2f5a5b88a5fb997'
                }
        }

        stage('4.Docker制作镜像') {
            steps {
                sh '''cp -rf  ./target/*.jar ./docker/
docker build -t ${JOB_NAME}:${tag} ./docker/'''
            }
        }

        stage('5.自定义镜像推送Harbor') {
            steps {
               sh '''docker login 192.168.201.107:80 -u admin -p 123456
docker tag ${JOB_NAME}:${tag} 192.168.201.107:80/${JOB_NAME}/${JOB_NAME}:${tag}
docker push  192.168.201.107:80/${JOB_NAME}/${JOB_NAME}:${tag}'''
            }
        }

        stage('6.将yml文件传到k8smaster节点上') {
            steps {
                sshPublisher(publishers: [sshPublisherDesc(configName: 'K8S', transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: '', execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: '', remoteDirectorySDF: false, removePrefix: '', sourceFiles: 'pipeline.yml')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])
            }
        }
        stage('7.执行kubectl apply命令把k8s部署起来') {
            steps {
                sh 'ssh root@192.168.201.108  kubectl apply -f /songxuan/pipeline.yml'
            }
        }
    }




post {
    success {
        dingtalk (
            robot: 'jenkins-dingding',
            type: 'MARKDOWN',
            title: "构建成功: ${env.JOB_NAME}",
            text: [
                "### 项目: ${env.JOB_NAME}",
                "### 版本: ${tag}",
                "### 构建结果: SUCCESS",
                "### 持续时间: ${currentBuild.durationString}"


            ],
            at: []
        )
    }
    failure {
        dingtalk (
            robot: 'jenkins-dingding',
            type: 'MARKDOWN',
            title: "构建失败: ${env.JOB_NAME}",
            text: [
                "### 项目: ${env.JOB_NAME}",
                "### 版本: ${tag}",
                "### 构建结果: FAILURE",
                "### 持续时间: ${currentBuild.durationString}",
                "**失败原因:**",
                "${currentBuild.currentResult}"
            ],
            atAll: true
        )
    }
}


}

最后去Jenkins执行任务
