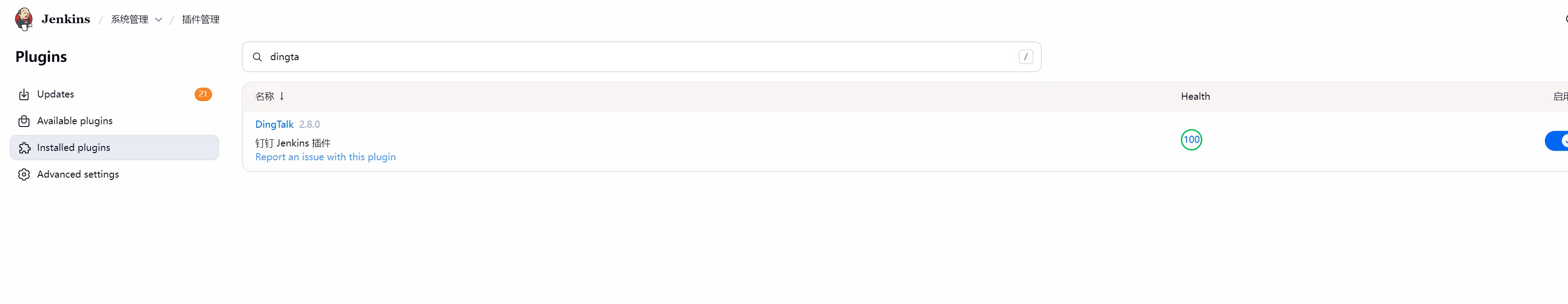

一、下载插件

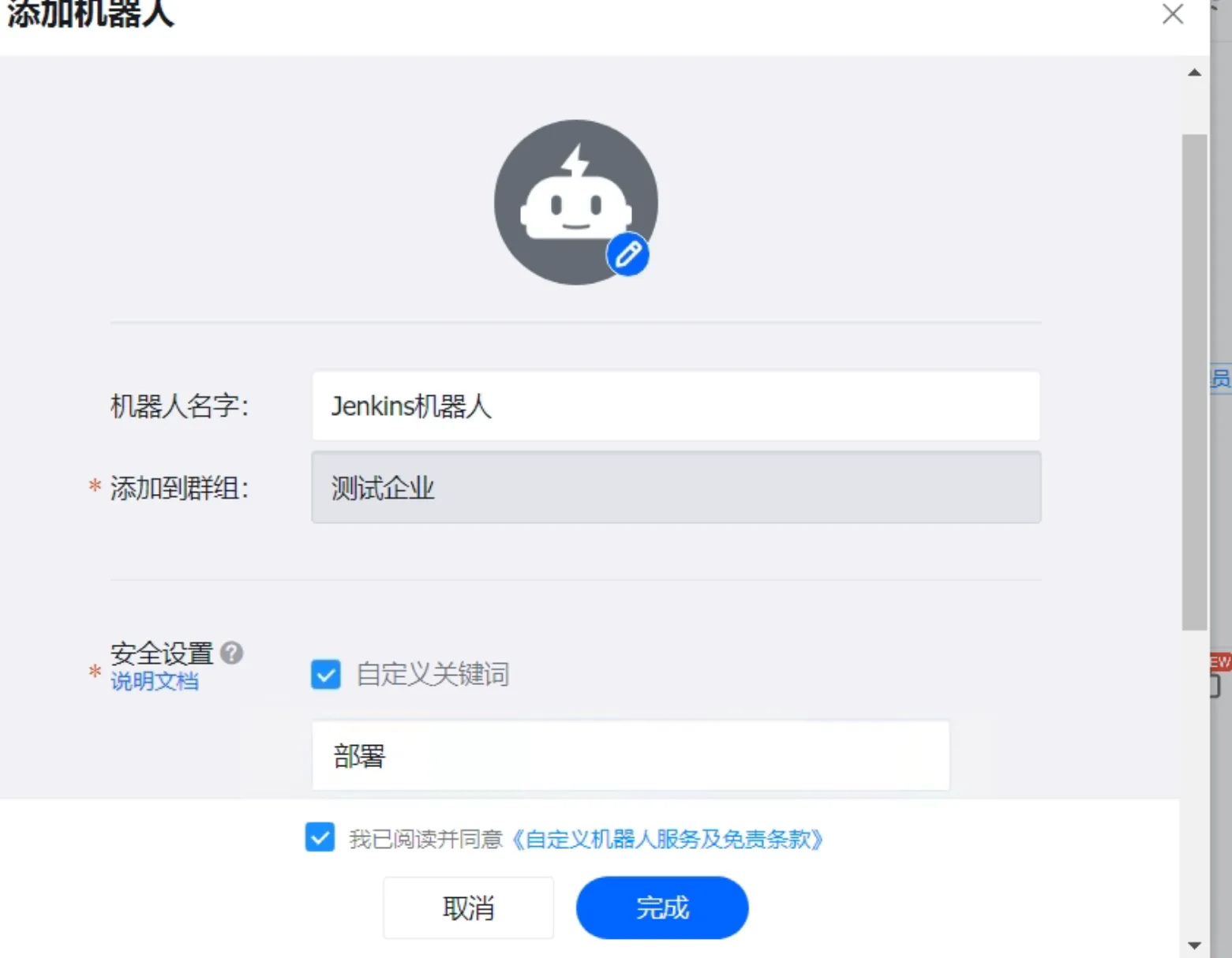

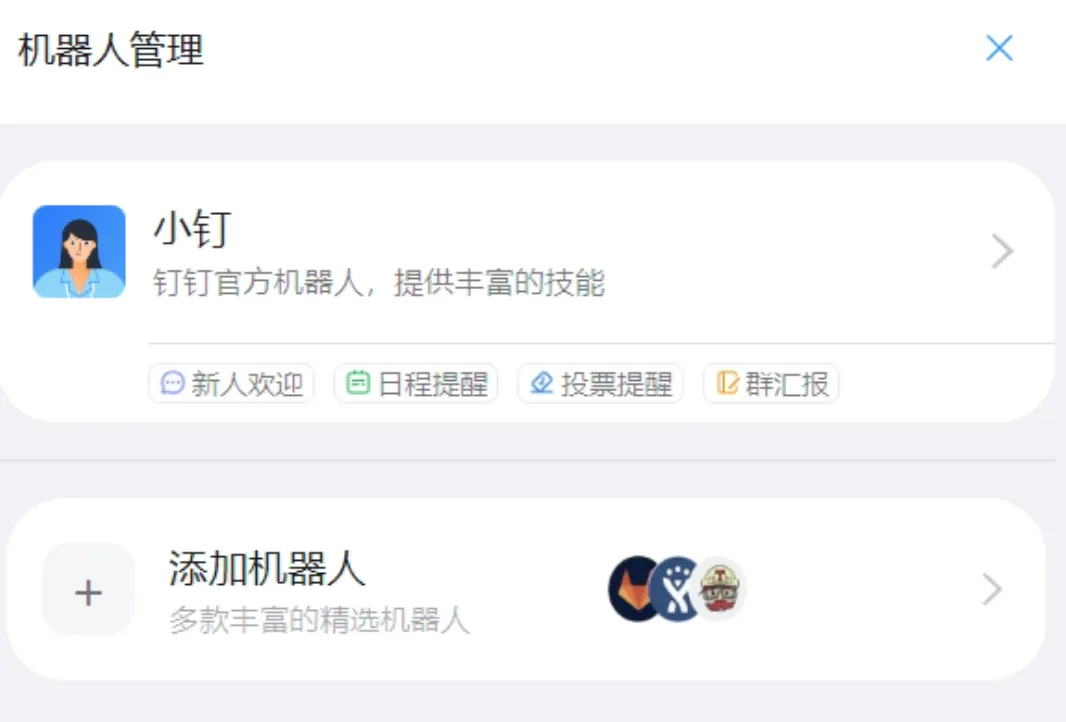

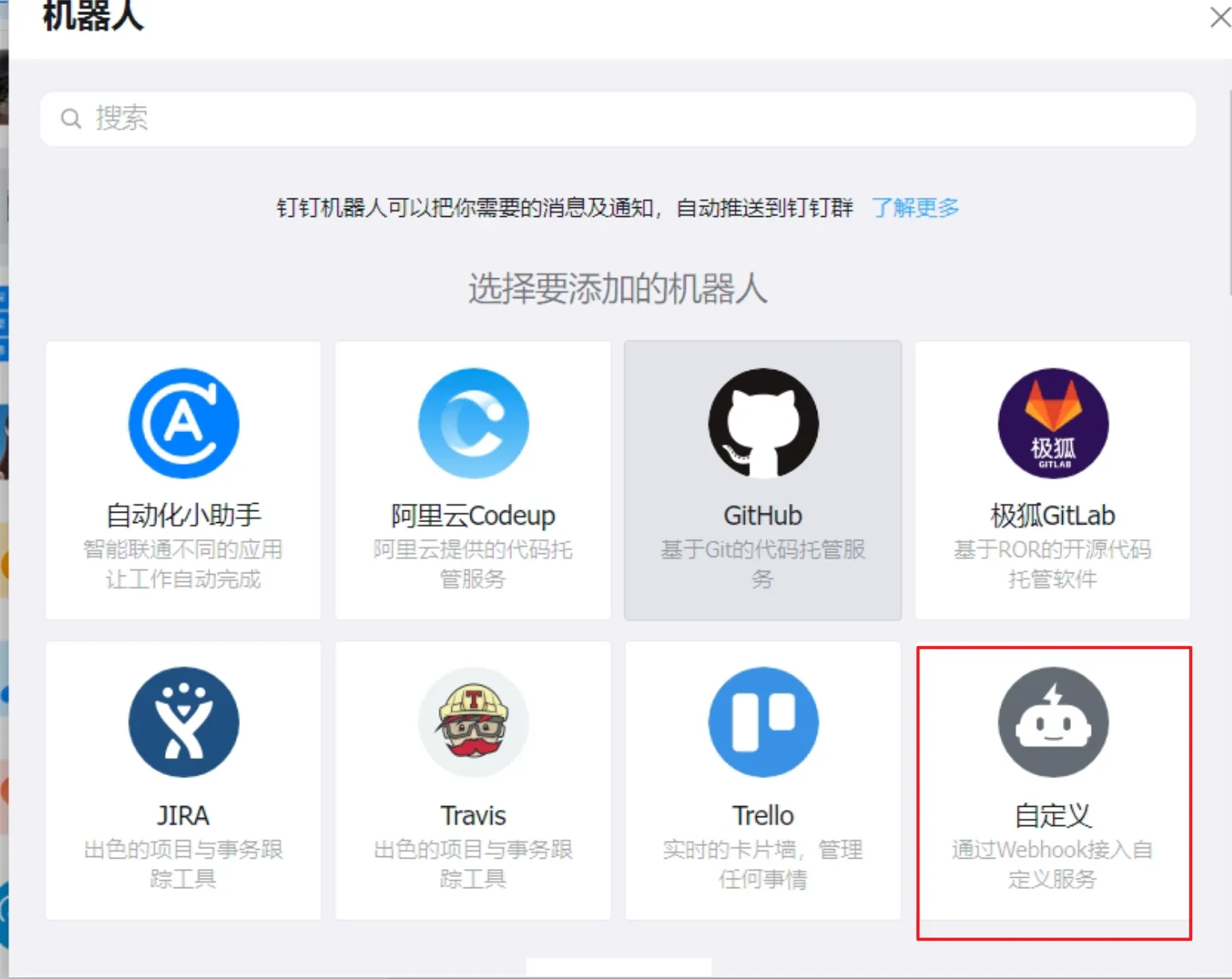

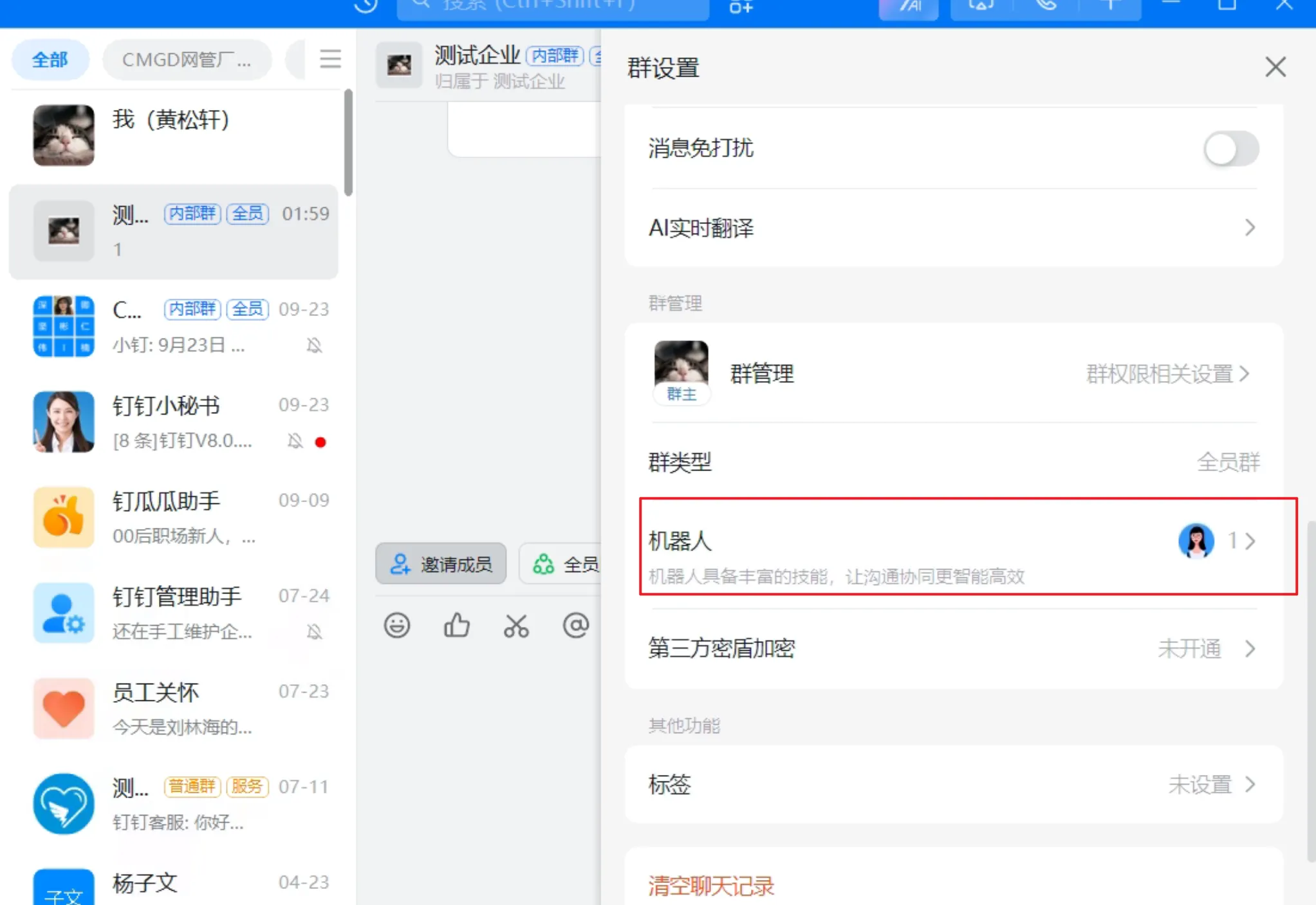

然后去钉钉添加机器人

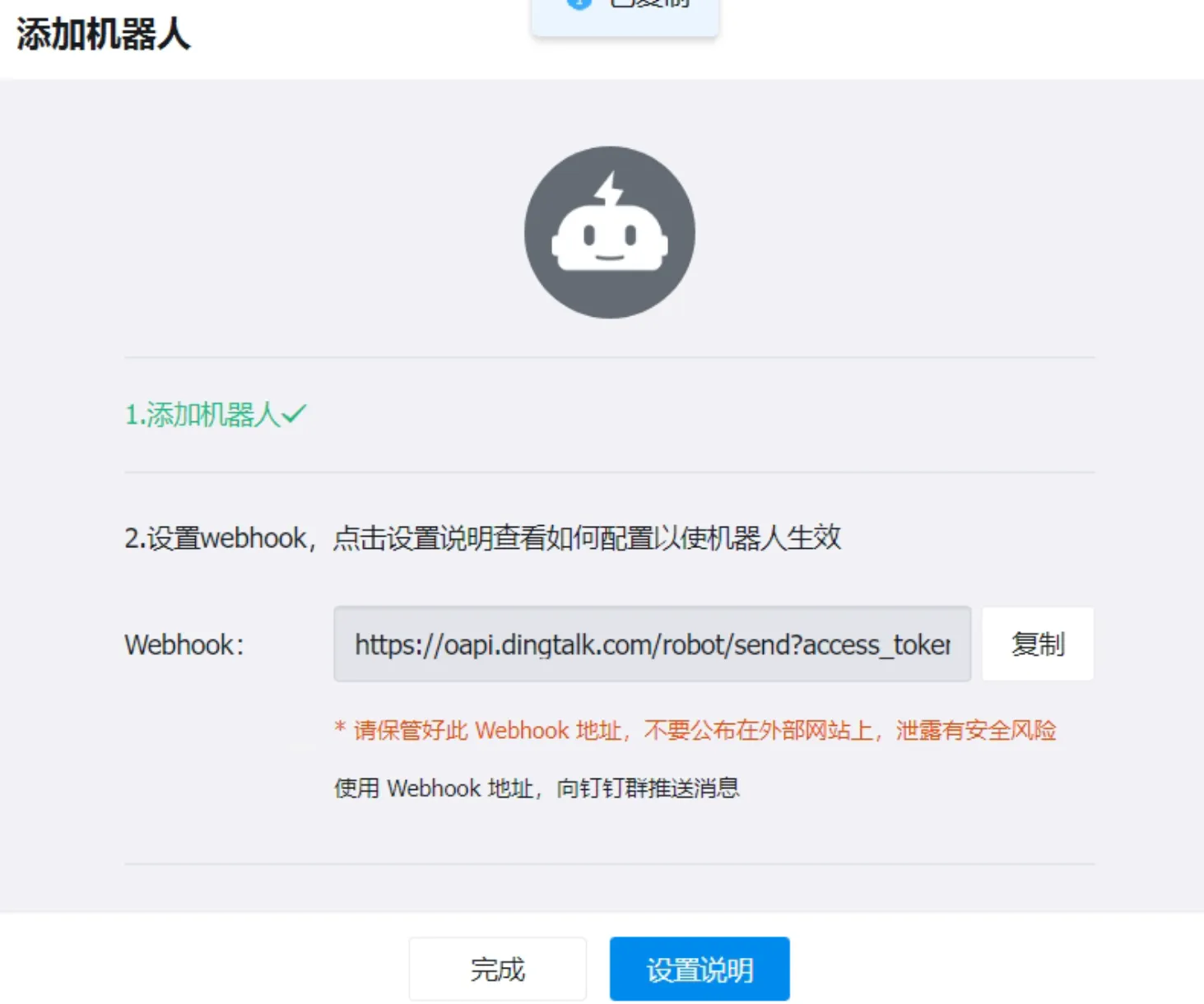

复制下来

js
https://oapi.dingtalk.com/robot/send?access_token=f1888f239560668660d65047a4c8079ceba05e96c07c6a3f7686f6875b602839

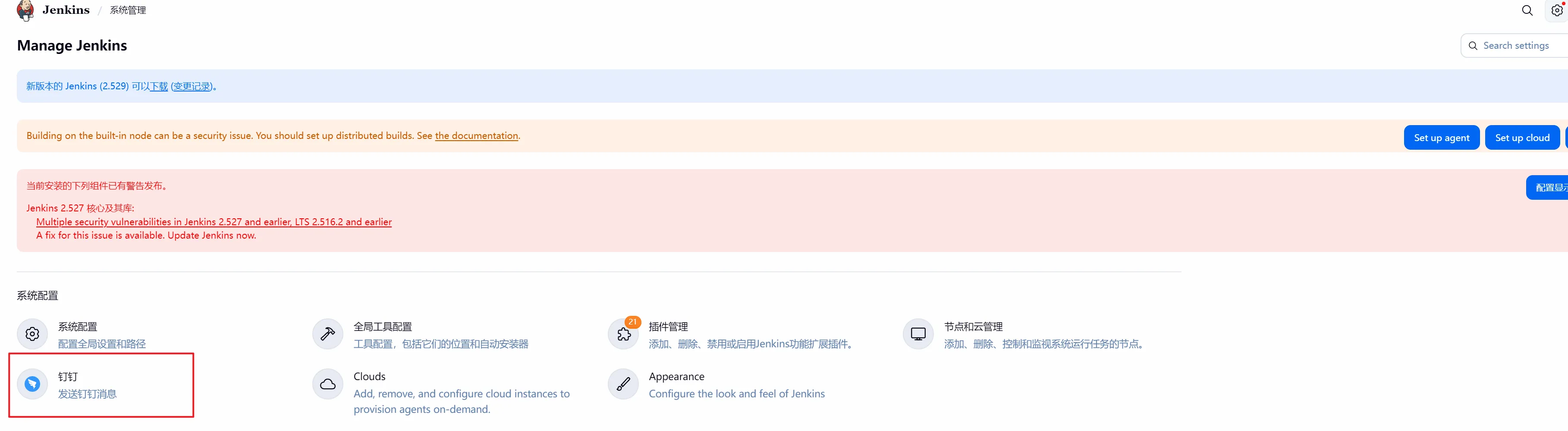

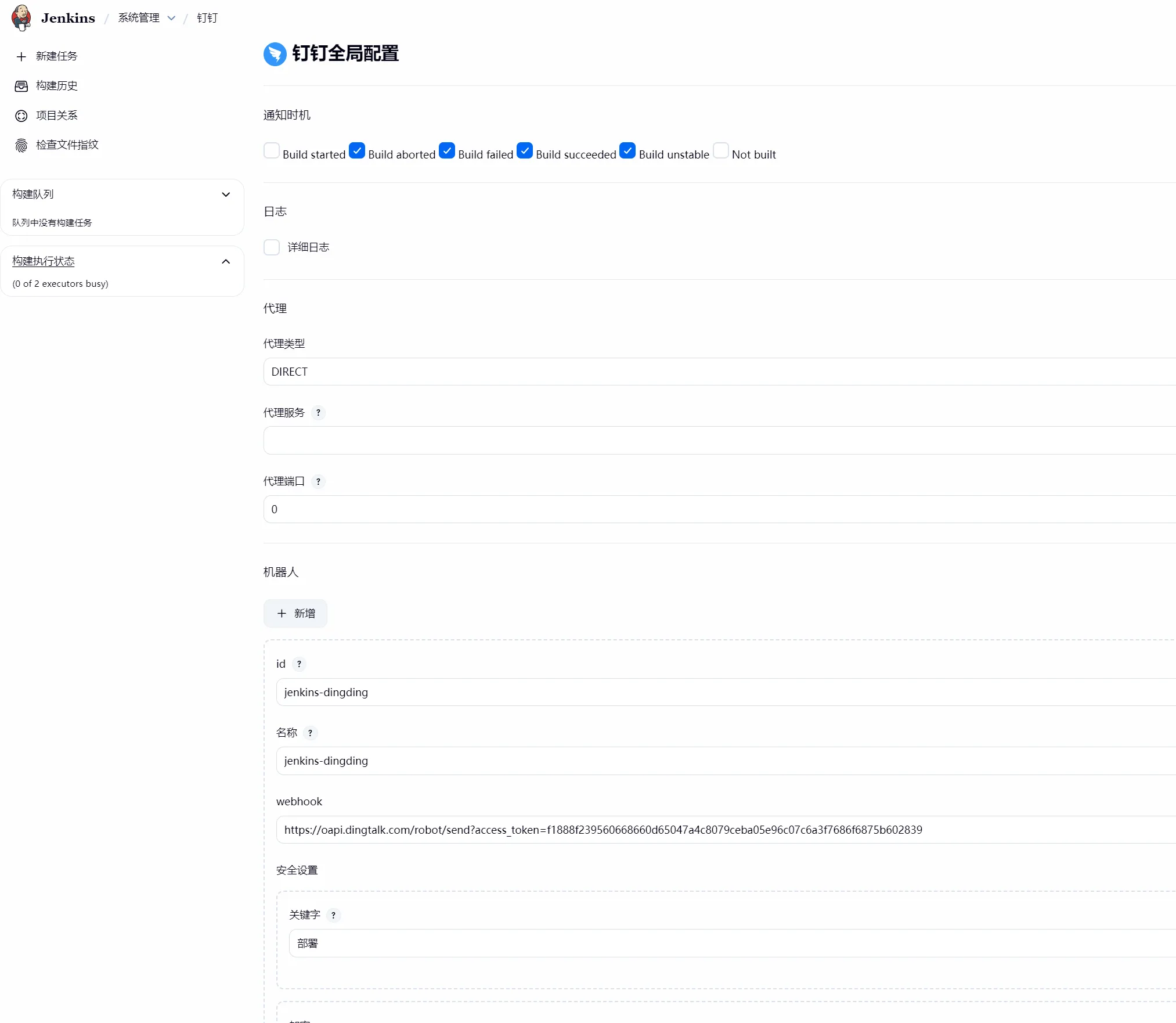

二、Jenkins配置钉钉

然后去gitlab仓库的jenkins文件添加代码

js
pipeline {
    agent any

    stages {
        stage('1.拉取git仓库代码') {
            steps {
                checkout scmGit(branches: [[name: '${tag}']], extensions: [], userRemoteConfigs: [[credentialsId: '41ccb3f5-d95e-4f7c-94cd-8af30c885e0d', url: 'http://192.168.201.105:8929/root/mytest1.git']])
            }
        }

        stage('2.通过Maven构建项目') {
            steps {
                sh '/var/jenkins_home/maven/bin/mvn  clean package -DskipTests'
            }
        }

        stage('3.质量代码检测') {
            steps {
                sh '/var/jenkins_home/sonar-scanner-4.8.0.2856-linux/bin/sonar-scanner  -Dsonar.sources=./  -Dsonar.projectname=${JOB_NAME}  -Dsonar.projectKey=${JOB_NAME}   -Dsonar.java.binaries=./target/  -Dsonar.login=178e1842a7318cabd37749b7f2f5a5b88a5fb997'
                }
        }

        stage('4.Docker制作镜像') {
            steps {
                sh '''cp -rf  ./target/*.jar ./docker/
docker build -t ${JOB_NAME}:${tag} ./docker/'''
            }
        }

        stage('5.自定义镜像推送Harbor') {
            steps {
               sh '''docker login 192.168.201.107:80 -u admin -p 123456
docker tag ${JOB_NAME}:${tag} 192.168.201.107:80/${JOB_NAME}/${JOB_NAME}:${tag}
docker push  192.168.201.107:80/${JOB_NAME}/${JOB_NAME}:${tag}'''
            }
        }

        stage('6.通知目标服务器拉取镜像启动') {
            steps {
                sshPublisher(publishers: [sshPublisherDesc(configName: '测试本机服务器', transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: "jiaoben.sh 192.168.201.107:80 mytest1test ${JOB_NAME} $tag  $host_port $port", execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: '', remoteDirectorySDF: false, removePrefix: '', sourceFiles: '')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])
            }
        }
    }

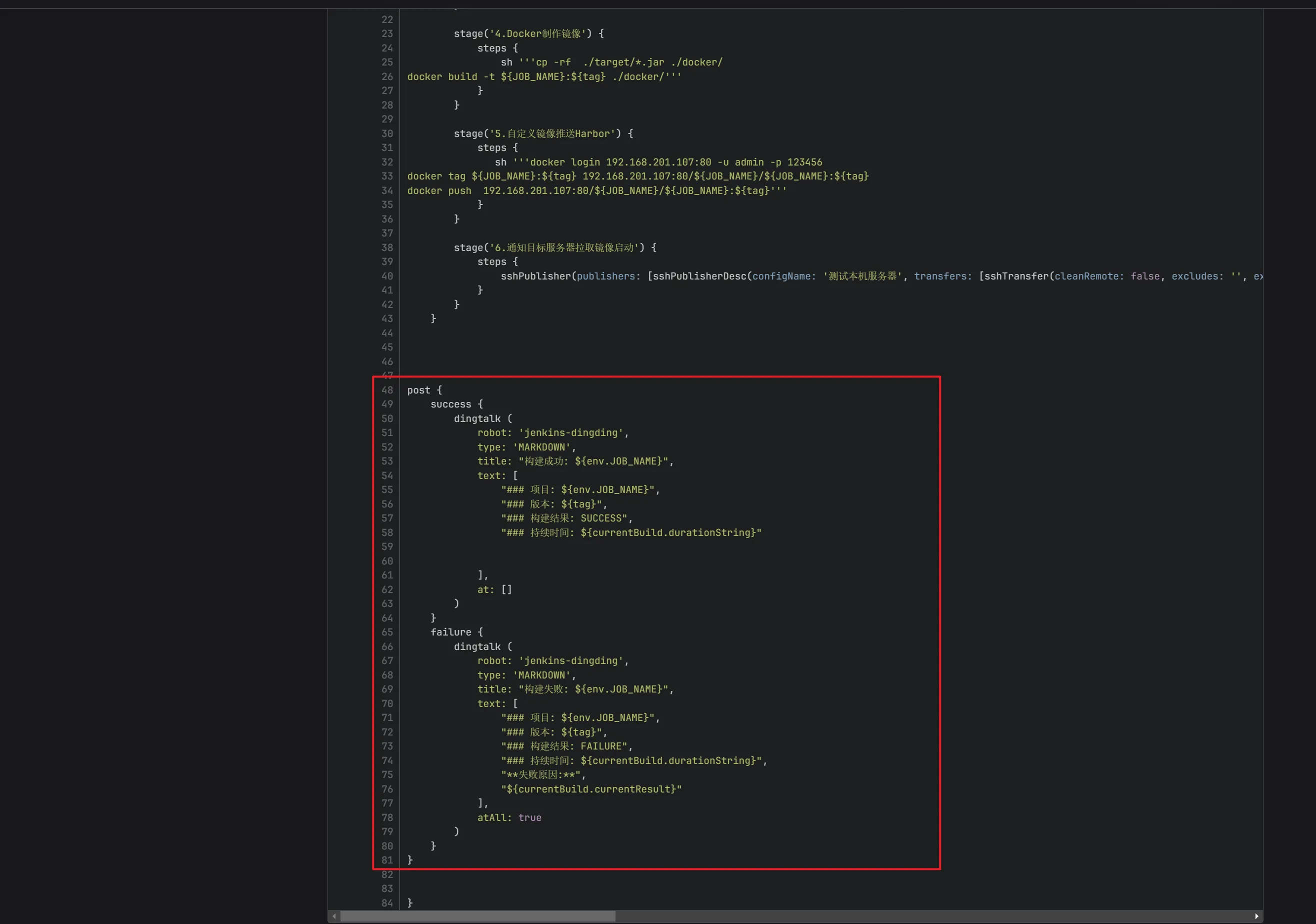

post {
    success {
        dingtalk (
            robot: 'jenkins-dingding',
            type: 'MARKDOWN',
            title: "构建成功: ${env.JOB_NAME}",
            text: [
                "### 项目: ${env.JOB_NAME}",
                "### 版本: ${tag}",
                "### 构建结果: SUCCESS",
                "### 持续时间: ${currentBuild.durationString}"


            ],
            at: []
        )
    }
    failure {
        dingtalk (
            robot: 'jenkins-dingding',
            type: 'MARKDOWN',
            title: "构建失败: ${env.JOB_NAME}",
            text: [
                "### 项目: ${env.JOB_NAME}",
                "### 版本: ${tag}",
                "### 构建结果: FAILURE",
                "### 持续时间: ${currentBuild.durationString}",
                "**失败原因:**",
                "${currentBuild.currentResult}"
            ],
            atAll: true
        )
    }
}


}

执行完成Jenkins流水线任务后，成功通知钉钉机器人
